Brand Name : | YGB,OEM,SKF,NTN |
Model Number : | NUP 304 ECP |
Certification : | ISO9001:2008 |
Price : | negotiation |
Supply Ability : | 10,000pcs per month |
Delivery Time : | 5-10 working days after received your payment |
Payment Terms : | T/T or LC |
MOQ : | 1 |
N 304 ECP bearing high capacity cylindrical roller bearing N304 ECP
20 x 52 x 15mm
Description :
Model | NUP 304 ECP |
Bearing material | GCr15/AISI52100/100Cr6 |
ID*OD*W (mm) | 20 x 52 x 15mm |
Seal type | double shields |
Lead time | Stock or 15-30days |
Weight(kg) | 0.156 |
Basic dynamic load ratings/C | 35.5 kN |
Basic static load ratings/C0 | 26 kN |
Limiting speed | 18000 r/min |
Clearance | C2,C0,C3,C4,C5 |
Viberation Level | V1,V2,V3,V4 |
Precision Rating | P0,P6,P5, |
MOQ | No MOQ |
Port | Shanghai |
Grease | Mobil polyrex EM,Kyodo Yushi SRL |
Payment terms | T/T, L/C |
) | Weight(kg) | Bearing number | Basic Load Rating(KN) | Speed(rpm) | ||||||
d | D | B | R1min | Rsmin | Dynamic Cr | Static Cor | reference | Limited | ||
15 | 35 | 11 | 0.6 | 0.3 | 0.050 | N202 | 12.7 | 10.4 | 20000 | 22000 |
15 | 35 | 11 | 0.6 | 0.3 | 0.050 | NJ202 | 12.7 | 10.4 | 20000 | 22000 |
15 | 35 | 11 | 0.6 | 0.3 | 0.050 | NU202 | 12.7 | 10.4 | 20000 | 22000 |
17 | 40 | 12 | 0.6 | 0.3 | 0.06 | N203 | 17.6 | 14.6 | 10000 | 18000 |
17 | 40 | 12 | 0.6 | 0.3 | 0.06 | NJ203 | 14.5 | 12.8 | 18000 | 18000 |
20 | 47 | 14 | 1.0 | 0.6 | 0.109 | N204 | 16.6 | 13.9 | 17000 | 20000 |
20 | 47 | 14 | 1.0 | 0.6 | 0.111 | NJ204 | 16.6 | 13.9 | 17000 | 20000 |
20 | 47 | 14 | 1.0 | 0.6 | 0.111 | NU204EM | 16.6 | 13.9 | 17000 | 20000 |
20 | 52 | 15 | 1.1 | 0.6 | 0.149 | N304 | 23.1 | 19.2 | 14000 | 17000 |
20 | 52 | 15 | 1.1 | 0.6 | 0.153 | NJ304 | 23.1 | 19.2 | 14000 | 17000 |
20 | 52 | 15 | 1.1 | 0.6 | 0.153 | NU304 | 23.1 | 19.2 | 14000 | 17000 |
25 | 52 | 15 | 1.0 | 0.6 | 0.160 | N205EM | 27.5 | 26.8 | 11000 | 14000 |
25 | 52 | 15 | 1.0 | 0.6 | 0.137 | NJ205 | 18.8 | 17 | 14000 | 17000 |
25 | 52 | 18 | 1.1 | 0.6 | 0.170 | NJ2205V | 35.3 | 29.4 | 12000 | 25000 |
25 | 52 | 15 | 1.0 | 0.6 | 0.160 | NU205EM | 27.5 | 26.8 | 11000 | 14000 |
25 | 62 | 17 | 1.1 | 1.1 | 0.235 | N305 | 31.5 | 27.7 | 12000 | 14000 |
25 | 62 | 17 | 1.1 | 1.1 | 0.241 | NJ305 | 31.5 | 27.7 | 12000 | 14000 |
25 | 62 | 17 | 1.1 | 1.1 | 0.241 | NU305 | 31.5 | 27.7 | 12000 | 14000 |
25 | 62 | 24 | 1.1 | 1.1 | 0.370 | NJ2305V | 67 | 72.7 | 7200 | 10000 |

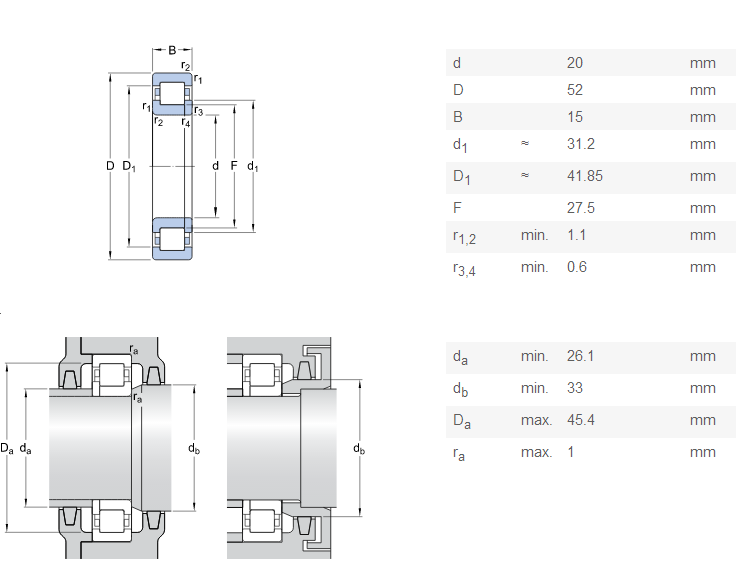

Drawing:
Shipping:
1). For small orders, we can send you by UPS, DHL, FEDEX. The
tracking number will be advised after delivery.
2). If an order is big, we will advise you to use Air Freight or
Sea Freight.
3). The balance payment should be paid before delivery to you.
4). In general, we deliver goods within 15 days.
Payment
1: T/T: 30% as deposit and 70% balance after getting a copy of B/L.
2: L/C (cannot for branded bearings.)
3: Discuss together between buyer and supplier.
![]() |
