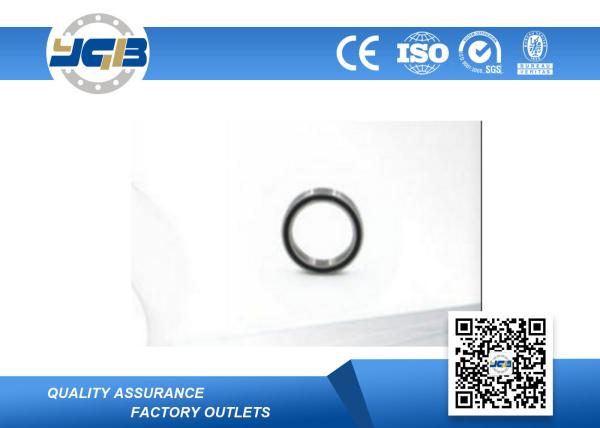

Stainless Steel Single Row Deep Groove Ball Bearing 61704-2RS 20x27x4 Mm

Ask Lasest Price
Brand Name :	YGB,OEM,SKF,NTN
Model Number :	61704-2RS
Certification :	ISO9001:2008
Price :	negotiation
Supply Ability :	10,000pcs per month
Delivery Time :	5-10 working days after received your payment
Payment Terms :	T/T or LC

Add to Cart

Product Details
Company Profile

Stainless Steel Single Row Deep Groove Ball Bearing 61704-2RS 20x27x4 Mm

Single row stainless stell deep groove ball bearing 61704-2RS 20x27x4 mm

Description :

Model	61704-2RS
Bearing material	GCr15/AISI52100/100Cr6
IDODW (mm)	20x27x4 mm
Seal type	open,double seals,double shields
Lead time	Stock or 15-30days
Weight(kg)	0.0054
Basic dynamic load ratings/C	0.585 kN
Basic static load ratings/C0	0.39 kN
Limiting speed	32000 r/min
Clearance	C2,C0,C3,C4,C5
Viberation Level	V1,V2,V3,V4
Precision Rating	P0,P6,P5,
MOQ	No MOQ
Port	Shanghai
Grease	Mobil polyrex EM, Kyodo Yushi SRL
Payment terms	T/T, L/C

Drawing:

Payment
1: T/T: 30% as deposit and 70% balance after getting a copy of B/L.
2: L/C (cannot for branded bearings.)
3: Discuss together between buyer and supplier.

Other Models:

Bearing	Bore		Outer Diameter		Width		Load Rating (KN)		Steel Ball Parameter		Max Speed		Weight
NO	d		D		B		Dynamic	Static	NO	Size	Grease	Oil	(Kg)
	mm inch		mm inch		mm inch		Cr	Cor	NO	mm	r/min	r/min
6000	10	0.3937	26	1.0236	8	0.315	4.55	1.95	7	4.763	29000	34000	0.019
6001	12	0.4724	28	1.1024	8	0.315	5.1	2.39	8	4.763	26000	30000	0.022
6002	15	0.5906	32	1.2598	9	0.3543	5.6	2.84	9	4.763	22000	26000	0.03
6003	17	0.6693	35	1.378	10	0.3937	6.8	3.35	10	4.763	20000	24000	0.039
6004	20	0.7874	42	1.6535	12	0.4724	9.4	5.05	9	6.35	18000	21000	0.069
6005	25	0.9843	47	1.8504	12	0.4724	10.1	5.85	10	6.35	15000	18000	0.08
6006	30	1.1811	55	2.1645	13	0.5118	13.2	8.3	11	7.144	13000	15000	0.12
6007	35	1.3779	62	2.4409	14	0.5512	16	10.3	11	7.938	12000	14000	0.16
6008	40	1.5748	68	2.6772	15	0.5906	16.8	11.5	12	7.938	10000	12000	0.19
6009	45	1.7716	75	2.9528	16	0.6299	21	15.1	12	8.731	9200	11000	0.25
6010	50	1.965	80	3.1496	16	0.6299	21.8	16.6	13	8.731	8400	9800	0.26
6011	55	2.1653	90	3.5433	18	0.7087	28.3	21.2	12	11	7700	9000	0.39
6012	60	2.362	95	3.74	18	0.7087	29.5	23.2	13	11	7000	8300	0.42
6013	65	2.559	100	3.937	18	0.7087	30.5	25.2	13	11.11	6500	7700	0.44
6014	70	2.7559	110	4.3307	20	0.7874	38	31	13	12.3	6100	7100	0.6
6015	75	2.9528	115	4.5276	20	0.7874	39.5	33.5	14	12.3	5700	6700	0.64
6016	80	3.1496	125	4.9213	22	0.8661	47.5	40	14	13.49	5300	6200	0.85
6017	85	3.3465	130	5.1181	22	0.8661	49.5	43	14	14	5000	5900	0.89
6018	90	3.5433	140	5.5118	24	0.9449	58	49.5	14	15.08	4700	5600	1.15
6019	95	3.7402	145	5.7087	24	0.9449	60.5	54	14	15.08	4500	5300	1.2
6020	100	3.937	150	5.9055	24	0.9449	60	54	14	16	4200	5000	1.2

Related Products:

Deep groove ball bearings
Cylindrical roller bearings
Needle roller bearings
Thrust ball bearings
Thrust roller bearings
Spherical roller bearings
Angular contact ball bearings

Why Us :

We are an industrial and trading company.We have our own brand:YGB.If you are interested in our product,I can take you to visit our factory.

Our factory have advanced testing equipment before every product leave the factory,we will be testing.We can send samples to you,you can test the quality,and if you accept the sample quality,we can promise: the follow-up orders’ quality will be the same as samples.

About ordinary standard type of bearing ,We have rich inventory,not have MOQ,if your need a product is Non-standard size,need customize,we will according the product size to determine the MOQ.

Our company can accept OEM,you can send sample to me,we can manufacturing products the same as sample. Meanwhile,we also can accept some well-known brands of OEM.

Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
