Brand Name : | YGB,OEM,SKF,NTN |
Model Number : | 30306 |
Certification : | ISO9001:2008 |
Price : | negotiation |
Supply Ability : | 10,000pcs per month |
Delivery Time : | 5-10 working days after received your payment |
Payment Terms : | T/T or LC |
Manufacturer widely used motorcycle bearing 30306 with high precision 30 x 72 x 20.75 mm
Description :
Model | 30306 |
Bearing material | GCr15/AISI52100/100Cr6 |
ID*OD*W (mm) | 30 x 72 x 20.75 mm |
Seal type | double shields |
Lead time | Stock or 15-30days |
Weight(kg) | 0.385 |
Basic dynamic load ratings/C | 56.1 kN |
Basic static load ratings/C0 | 56 kN |
Limiting speed | 10000 r/min |
Clearance | C2,C0,C3,C4,C5 |
Viberation Level | V1,V2,V3,V4 |
Precision Rating | P0,P6,P5, |
MOQ | No MOQ |
Port | Shanghai |
Grease | Mobil polyrex EM,Kyodo Yushi SRL |
Payment terms | T/T, L/C |
Regarding Taper Roller Bearing
Taper roller bearing are generally used to support combined load
mainly consisting of radial load. Their cups are separable for easy
assembling. During mounting and using, radial clearance and axial
clearance can be adjusted and preloaded mounting can be made.
Taper roller bearing are uniquely designed to manage both thrust
and radial loads on rotating shafts and in housings.
Taper roller bearing are designed to carry both thrust and radial
loads and consist of four components: the cone, or inner ring; the
cup, or outer ring; the tapered rollers, or rolling elements; and
the cage, or roller retainer.
Tapere roller bearing mainly carry radial, axial combined load with
radial load in the main. The capacity of axial load carrying
depends on the contact angle of outer ring’s raceway. The bigger
the contact angle is, the greater the capacity will be.
Taper roller bearing the angle between the outer raceway generatrix
and line, the bearing can bearing heavy load and other Tappered
Roller Bearings, it mainly bears joint load based on one way axial
load,but not only radial load.

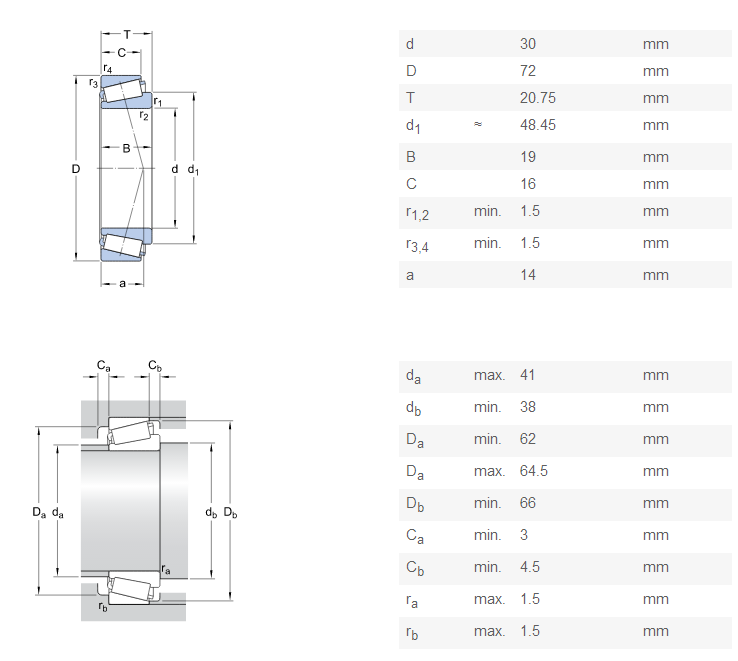

Drawing:
Other models
Bearing No. | Dimensions | inner | outer | Basic load | Weight | |||||
d | D | T | B | C | r | r | cr | cor | kg | |
30305 | 25 | 62 | 18.25 | 17 | 15 | 1.5 | 1.5 | 47500 | 46000 | 0.27 |
31305 | 25 | 62 | 18.25 | 17 | 13 | 1.5 | 1.5 | 40700 | 46100 | 0.262 |
32305 | 25 | 62 | 25.25 | 24 | 20 | 1.5 | 1.5 | 62500 | 66000 | 0.376 |
32006X | 30 | 55 | 17.00 | 17 | 13 | 1 | 1 | 36000 | 44500 | 0.172 |
33006 | 30 | 55 | 20.00 | 20 | 16 | 1 | 1 | 42000 | 54000 | 0.208 |
30206 | 30 | 62 | 17.25 | 16 | 14 | 1 | 1 | 43000 | 47500 | 0.238 |
32206 | 30 | 62 | 21.25 | 20 | 17 | 1 | 1 | 52000 | 60000 | 0.297 |
33206 | 30 | 62 | 25.00 | 25 | 19.5 | 1 | 1 | 66500 | 79500 | 0.355 |
30306 | 30 | 72 | 20.75 | 19 | 16 | 1.5 | 1.5 | 59500 | 60000 | 0.403 |
31306 | 30 | 72 | 20.75 | 19 | 14 | 1.5 | 1.5 | 52500 | 60400 | 0.392 |
32306 | 30 | 72 | 28.75 | 27 | 23 | 1.5 | 1.5 | 80000 | 88500 | 0.57 |
32007X | 35 | 62 | 18.00 | 18 | 14 | 1 | 1 | 43500 | 55500 | 0.23 |
30207 | 35 | 72 | 18.25 | 17 | 15 | 1.5 | 1.5 | 54000 | 59500 | 0.34 |
32207 | 35 | 72 | 24.25 | 23 | 19 | 1.5 | 1.5 | 40500 | 83500 | 0.456 |
30307 | 35 | 80 | 22.75 | 21 | 18 | 2 | 1.5 | 46000 | 79000 | 0.5398 |
32307 | 35 | 80 | 32.75 | 31 | 25 | 2 | 1.5 | 99000 | 111000 | 0.765 |
33007 | 35 | 62 | 21.00 | 21 | 17 | 1 | 1 | 46900 | 63300 | 0.254 |
31307 | 35 | 80 | 22.75 | 21 | 15 | 2 | 1.5 | 65700 | 76800 | 0.514 |
Deep groove ball bearings
Cylindrical roller bearings
Needle roller bearings
Thrust ball bearings
Thrust roller bearings
Spherical roller bearings
Angular contact ball bearings
Payment
1 : T/T: 30% as deposit and 70% balance after get copy of B/L.
2 : L/C (cannot for branded bearings.)
3 : Discuss together between buyer and supplier.
Dear friend, any questions please feel free to contact us, let's
learn and grow together in bearing worlds!
![]() |
