    Simple Small Fag Tapered Roller Bearing / Spherical Roller Bearing 30307

    Ask Lasest Price
    Brand Name : YGB,OEM,SKF,NTN
    Model Number : 30307
    Certification : ISO9001:2008
    Price : negotiation
    Supply Ability : 10,000pcs per month
    Delivery Time : 5-10 working days after received your payment
    Payment Terms : T/T or LC
    • Product Details
    • Company Profile

    Simple Small Fag Tapered Roller Bearing / Spherical Roller Bearing 30307

    Favorable Taper Roller Bearing with high performance 30307 for mechanical transmission , double taper roller bearing

    Description :

    Model30307
    Bearing materialGCr15/AISI52100/100Cr6
    ID*OD*W (mm)35 x 80 x 22.75mm
    Seal typedouble shields
    Lead timeStock or 15-30days
    Weight(kg)0.511
    Basic dynamic load ratings/C72.1 kN
    Basic static load ratings/C073.5 kN
    Limiting speed9000 r/min
    ClearanceC2,C0,C3,C4,C5
    Viberation LevelV1,V2,V3,V4
    Precision RatingP0,P6,P5,
    MOQNo MOQ
    PortShanghai
    GreaseMobil polyrex EM,Kyodo Yushi SRL
    Payment termsT/T, L/C

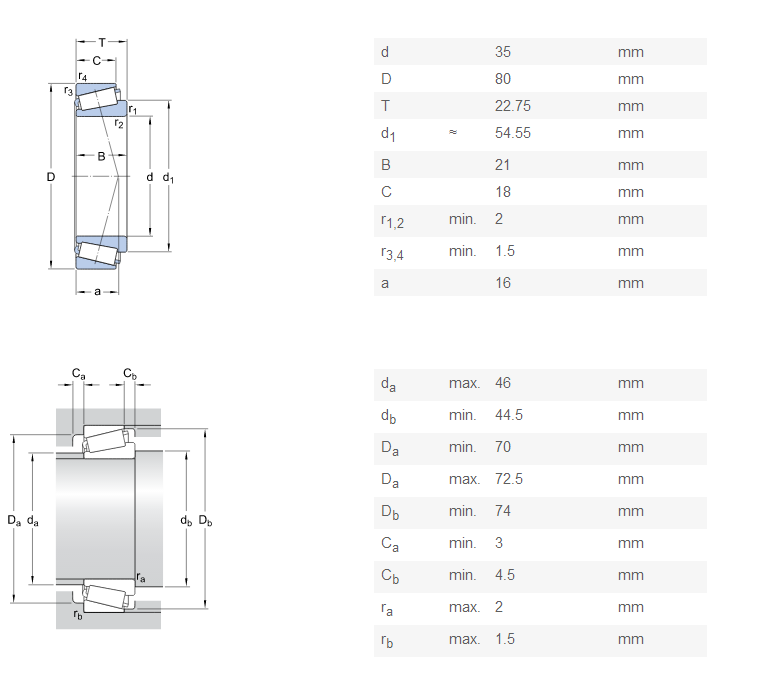

    Drawing:



    Descriptions of Taper Roller Bearing
    Single row tapered roller bearing is the most basic and widely used tapered bearing. It consists of the cone assembly and the cup. It is usually fitted as one of an opposing pair. During equipment assembly, single row bearings can be set to the required clearance (endplay) ro preload condition to optimize performance.

    Application
    Single Row taper roller bearings are the most used in all kinds of machinery.
    Double Row taper roller bearings are used in automobiles hub wheel,and high speed railway,gear box,lifting equipment,tunnel boring machine mining machinery.
    Four Row taper roller bearings used in large cold and hot rolling mill,and other heavy machinery.

    Reference Demensions

    Principal dimensions(mm)Basic Load ratingBearing NumberLimiting SpeedWeight
    dDTBCrr1(kN)(rpm)
    (min)(min)CrCorGreaseOil(kg)
    357218.2517151.51.555.160.930207560074000.344
    358022.75211821.576.278.930307520069000.527
    31307
    35621818141145.559.432007X620082000.231
    357224.2523191.51.569.682.432207560075000.551
    358032.75312521.510111432307530070000.776
    35722828221.51.587.610733207570075000.551
