Vehicle High Speed Small Tapered Roller Bearings 30205 Large Stocked 25 x 52 x 16.25mm

Product Categories

Deep Groove Ball Bearing [135]
Self Aligning Ball Bearing [32]
Thrust Ball Bearing [29]
Cylindrical Roller Bearing [68]
Angular Contact Ball Bearing [68]
Tapered Roller Bearing [83]
Roller Thrust Bearing [80]
Needle Roller Bearing [27]
Stainless Steel Roller Bearing [21]
Electrically Insulated Bearings [25]
Spherical Roller Bearing [76]

YGB Bearing Co.,Ltd

Contact Now

Vehicle High Speed Small Tapered Roller Bearings 30205 Large Stocked 25 x 52 x 16.25mm

Ask Lasest Price
Brand Name :	YGB,OEM,SKF,NTN
Model Number :	30205
Certification :	ISO9001:2008
Price :	negotiation
Supply Ability :	10,000pcs per month
Delivery Time :	5-10 working days after received your payment
Payment Terms :	T/T or LC

Add to Cart

Product Details
Company Profile

Vehicle High Speed Small Tapered Roller Bearings 30205 Large Stocked 25 x 52 x 16.25mm

Large stock tapered roller bearing of good quality 30205 long life for motor vehicle

Description :

Model	30205
Bearing material	GCr15/AISI52100/100Cr6
IDODW (mm)	25 x 52 x 16.25mm
Seal type	double shields
Lead time	Stock or 15-30days
Weight(kg)	0.151
Basic dynamic load ratings/C	30.8 kN
Basic static load ratings/C0	33.5 kN
Limiting speed	13000 r/min
Clearance	C2,C0,C3,C4,C5
Viberation Level	V1,V2,V3,V4
Precision Rating	P0,P6,P5,
MOQ	No MOQ
Port	Shanghai
Grease	Mobil polyrex EM,Kyodo Yushi SRL
Payment terms	T/T, L/C

Taper Roller Bearing details
These bearings have tapered inner and outer raceways between which tapered roller are arranged. The design of taper rollers makes them particularly suited to accommodating combined axial and radial loads. They are supplied as a cup and cone set (inner and outer).

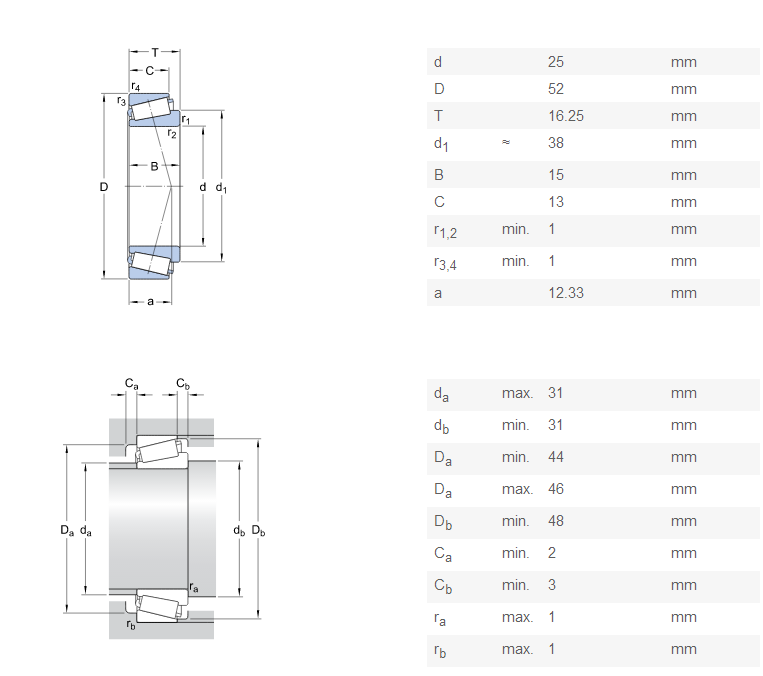

Drawing:

Other models

model	ID	OD	W	Cr	Cor	Grease lubrication speed	Oil lubrication speed	weight
model	(mm)	(mm)	(mm)	(kN)	(kN)	(r/min)	(r/min)	(kg)
30202	15	35	11	14.9	13.4	12000	16000	0.053
30244	220	400	73	—	—	—	—	35.5
30352	260	540	114	—	—	—	—	108
32205	25	72	24.25	—	—	—	—	0.174
30302	15	42	13	22.8	21.5	9000	12000	0.094
30203	17	40	12	20.8	21.8	9000	12000	0.079
30303	17	47	14	28.2	27.2	8500	11000	0.129
32303	17	47	19	31.9	29.9	9400	13000	0.17
32904	20	37	12	13.2	17.5	9500	13000	0.056
32004	20	42	15	25	28.2	8500	11000	0.095
30204	20	47	14	28.2	30.5	8000	10000	0.126
30304	20	52	15	30.5	28.4	8300	11000	0.17
32304	20	52	21	42.8	46.2	7500	9500	0.23
329/22	22	40	12	15	20	8500	11000	0.065
320/22	22	44	15	26	30.2	8000	10000	0.1
32905	25	42	12	16	21	6300	10000	0.064
32005	25	47	15	28	34	7500	9500	0.11
33005	25	47	17	32.5	42.5	7500	9500	0.129
30205	25	52	15	32.2	37	7000	9000	0.154
33205	25	52	22	47	55.8	7000	9000	0.216
30305	25	62	17	46.8	48	6300	8000	0.263
31305	25	62	17	40.5	46	6300	8000	0.262
32305	25	62	24	61.5	68.8	6300	8000	0.368

Our Main Products:

Deep groove ball bearings
Cylindrical roller bearings
Needle roller bearings
Thrust ball bearings
Thrust roller bearings
Spherical roller bearings
Angular contact ball bearings

OUR BEARIGN PRODUCTS
100% real location shooting
100% real section pictures and describe
100% real good quality and reasonable price
100% real timely shipment as agreed
100% real good service provided

Uses
Tapered roller bearings are mainly exposed to the radial diameter, axial load. Load bearing capacity depends on the angle of the outer ring raceway angle greater carrying capacity. These bearings are separable bearings , rolling bearing according to the number of columns into single row , double row and four- row tapered roller bearings. Single row tapered roller bearing clearance to be adjusted during installation ; double row and four row tapered roller bearing clearance in the factory according to user requirements given , users do not need to be adjusted .

Payment
1 : T/T: 30% as deposit and 70% balance after get copy of B/L.
2 : L/C (cannot for branded bearings.)
3 : Discuss together between buyer and supplier.

Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
