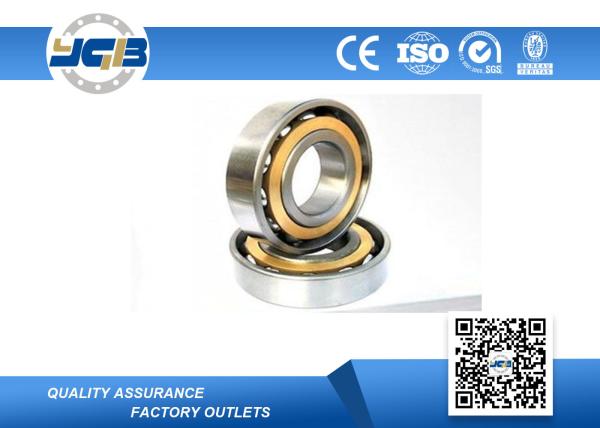

    Miniature Angular Contact Bearings / High Speed Automotive Ball Bearings

    Ask Lasest Price
    Brand Name : YGB,OEM,SKF,NTN
    Model Number : 7202B
    Certification : ISO9001:2008
    Price : negotiation
    Supply Ability : 10,000pcs per month
    Delivery Time : 5-10 working days after received your payment
    Payment Terms : T/T or LC
    • Product Details
    • Company Profile

    Miniature Angular Contact Bearings / High Speed Automotive Ball Bearings

    Ball bearing for turbocharg 72 series angular contact ball bearing used for machine tools , furnace fan bearings

    Description :

    Angular contact ball bearings are self-retaining units with solid inner and outer rings and ball and cage assemblies withpolyamide, sheet metal or brass cages. The raceways of the inner and outer rings are offset from each other along the bearing axis. The bearings are available in open and sealed designs. Their angular adjustment facility is very limited.


    Model7202B
    Bearing materialGCr15/AISI52100/100Cr6
    ID*OD*W (mm)15 x 35 x 11 mm
    Seal typedouble shields
    Lead timeStock or 15-30days
    Weight(kg)0.048
    Basic dynamic load ratings/C7.45 kN
    Basic static load ratings/C03.95 kN
    Limiting speed24000 r/min
    ClearanceC2,C0,C3,C4,C5
    Viberation LevelV1,V2,V3,V4
    Precision RatingP0,P6,P5,
    MOQNo MOQ
    PortShanghai
    GreaseMobil polyrex EM,Kyodo Yushi SRL
    Payment termsT/T, L/C


    Drawing:


    Other Models:

    7000AC7200AC7300AC7000ACM7200ACM7303ACM
    7001AC7201AC7301AC7001ACM7201ACM7304ACM
    7002AC7202AC7302AC7002ACM7202ACM7305ACM
    7003AC7203AC7303AC7003ACM7203ACM7306ACM
    7004AC7204AC7304AC7004ACM7204ACM7307ACM
    7005AC7205AC7305AC7005ACM7205ACM7308ACM
    7006AC7206AC7306AC7006ACM7206ACM7309ACM
    7007AC7207AC7307AC7007ACM7207ACM7310ACM
    7008AC7208AC7308AC7008ACM7208ACM7311ACM
    7009AC7209AC7309AC7009ACM7209ACM7312ACM
    7010AC7210AC7310AC7010ACM7210ACM7313ACM
    7011AC7211AC7311AC7011ACM7211ACM7315ACM
    7012AC7212AC7312AC7012ACM7212ACM7316ACM
    7013AC7213AC7313AC7013ACM7213ACM7317ACM
    7014AC7214AC7314AC7014ACM7214ACM7318ACM
    7015AC7215AC7315AC7015ACM7215ACM7319ACM
    7016AC7216AC7316AC7016ACM7216ACM7320ACM
    7017AC7217AC7317AC7017ACM7217ACM7322ACM
    7018AC7218AC7318AC7018ACM7218ACM7324ACM
