Bearings For Sliding Doors 51107 Bearing Single Direction Thrust
Ball Bearing
Description:
Thrust ball bearing is made up of housing ring, axis ring and steel
ball maintains module. Which is match for axis is called axis ring,
which is match for shell is called housing ring.
Thrust Ball Bearings are applied to machine elements which bear
single side axial load and with the lower the mechanical speed,
such as crane hooks, immediately water pumps, immediately
centrifuges, jacks, low-speed reducer , etc.
| Model | 51107 |
| Bearing material | GCr15/AISI52100/100Cr6 |
| ID*OD*W (mm) | 35 x 52 x 12mm |
| Seal type | double shields |
| Lead time | Stock or 15-30days |
| Weight(kg) | 0.08 |
| Basic dynamic load ratings/C | 19.9 kN |
| Basic static load ratings/C0 | 51 kN |
| Limiting speed | 7500 r/min |
| Clearance | C2,C0,C3,C4,C5 |
| Viberation Level | V1,V2,V3,V4 |
| Precision Rating | P0,P6,P5, |
| MOQ | No MOQ |
| Port | Shanghai |
| Grease | Mobil polyrex EM,Kyodo Yushi SRL |
| Payment terms | T/T, L/C |
Thrust Ball Bearing:
1. Single direction thrust ball bearings: consist of two washers
with raceways and balls guided b a cage. Washers have flat seating
surfaces, and that is why they must be supported so that all balls
can be evenly loaded. Bearings carry the axial load only in one
direction. They are not able to carry radial forces.
2. Double direction thrust ball bearings have two cages with balls
between the central shaft washer and two honding washers with flat
seating surfaces. The shaft washer has raceways on both sides and
is fixed on the journal. Bearings are able to carry only axial
forces in both directions.
3. These bearing are widely used in automobile, electrical. (Home
appliances, electric tools, fitness equipment, motors, medical
devices, motorbikes, textile machines)

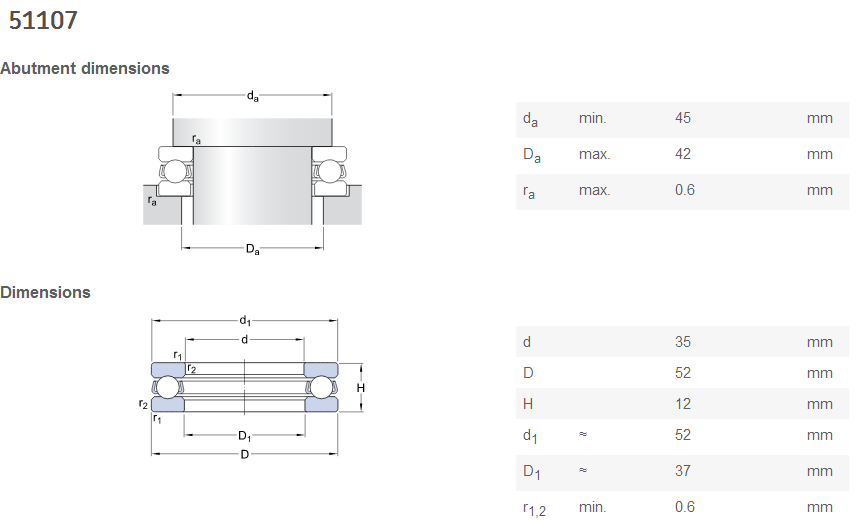

Drawing:
Specification:
1. High precision bearings
2. ISO standard bearing
3. High quality and competitive price
4. Many famous brands can be available
5. Low noise and long life
Packaging & Shipping;
Packaging Details
1, Industry packaging: Plastic tube + Carton + pallet
2, Commercial packaging: Single color box+Carton+pallet
3, According to the requirement of customers'
Series Model:
Dimension | Basic load rating | Limiting speed(r/min) | Weight(kg) | Model No |
d(mm) | D(mm) | H(mm) | Cr | Cor | | | |
55 | 78 | 16 | 90 | 300 | 3600 | 0.218 | 81111 |
55 | 90 | 25 | 154 | 405 | 3300 | 0.568 | 81211 |
55 | 105 | 30 | 184 | 600 | 2900 | 1.18 | 89311 |
55 | 120 | 29 | 222 | 870 | 2600 | 1.698 | 87411 |
60 | 85 | 17 | 103 | 315 | 3300 | 0.266 | 81112 |
60 | 95 | 26 | 172 | 480 | 3100 | 0.642 | 81212 |
60 | 110 | 30 | 196 | 670 | 2700 | 1.26 | 89312 |
60 | 130 | 32 | 260 | 1000 | 2500 | 2.26 | 87412 |
60 | 130 | 42 | 390 | 1220 | 2500 | 2.818 | 89412 |
65 | 90 | 18 | 107 | 340 | 3100 | 0.31 | 81113 |
65 | 100 | 27 | 177 | 500 | 2900 | 0.721 | 81213 |
65 | 115 | 30 | 194 | 670 | 2600 | 1.33 | 89313 |
65 | 140 | 45 | 445 | 1410 | 2300 | 3.52 | 89413 |
65 | 140 | 34 | 300 | 1140 | 2300 | 2.75 | 87413 |
70 | 95 | 18 | 111 | 365 | 2900 | 0.332 | 81114 |
70 | 105 | 27 | 187 | 550 | 2700 | 0.768 | 81214 |
70 | 125 | 34 | 239 | 830 | 2400 | 1.82 | 89314 |
70 | 150 | 36 | 360 | 1380 | 2200 | 3.37 | 87414 |
70 | 150 | 48 | 450 | 1390 | 2100 | 4.38 | 89414 |
FAQ:
1. Q: Are you a factory or trading company?
A: YGB Bearing is specialized in manufacturing and exporting
bearings.
We have own factory and warehouse.
2. Q: Can I get some samples and do you offer the sample free?
A: Yes, sure, we are honored to offer you samples. Can you buy a
ticket?
3. Q: What is the payment?
A: 30% T/T In Advance, 70% T/T Against Copy Of B/L
B: 100% L/C At Sight
4. Q: What is the MOQ for bearing?
A: Our MOQ is 1 pc.
5. Q: What kind of service you can offer?
A:Technology support; Installation guidance; OEM.
Dear friend, any questions please feel free to contact us, let's
learn and grow together in bearing worlds!
