OEM 6309 2Z 6309 2RS Skf Ball Bearing Size 4510025mm With Dust Cover

Ask Lasest Price
Brand Name :	YGB,SKF,TNT, OEM
Model Number :	6309 2Z
Certification :	ISO9001:2008
Price :	negotiation
Payment Terms :	T/T , L/C
Supply Ability :	1,000,000pcs per month
Delivery Time :	within 5- 10 working days after received your payment

Add to Cart

Product Details
Company Profile

OEM 6309 2Z 6309 2RS Skf Ball Bearing Size 4510025mm With Dust Cover

**SKF bearing 6309 2Z 6309 2RS deep groove ball bearing with size 4510025mm with dust cover**

Description :

Model	6309-2Z
Bearing type:	Deep groove ball bearings
Row	2
63	Medium series
2RS1	Rubber Seals on Both Sides of Bearing
IDODW (mm)	45 x 100 x 25 mm
Weight(kg)	0.86
Seals of the shields	Rubber Seals on Both Sides of Bearing
Basic dynamic load ratings/C	55.3 kN
Basic static load ratings/C0	31.5 kN
Fatigue load limit	1.34 kN
Reference speed	/
Limiting speed	4500 rmp/min
Clearance	Standard
Lead time	Stock or 15-30days
Port	Shanghai

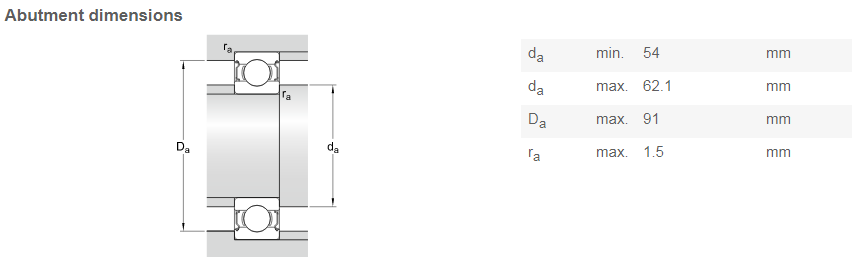

The Drawing:

Series Models:

Basic	Nominal Bearing Dimensions			Preferred Shoulder Diameters
Bearing	d	D	B,C	r (min)	da (min)	da (max)	Da (max)
No.	mm	mm	mm	mm	mm	mm	mm
604	4	12	4	0.2	5.4	6.6	10.6
605	5	14	5	0.2	6.6	7.4	12.4
606	6	17	6	0.3	8	8.6	15
607	7	19	6	0.3	9	10.4	17
608	8	22	7	0.3	10	12.2	10
609	9	24	7	0.3	11	13.1	12
6000	10	26	8	0.3	12	13.5	24.1
6001	12	28	8	0.3	14	16	26
6002	15	32	9	0.3	17	19	30
6003	17	35	10	0.3	19	21.5	33
6004	20	42	12	0.6	24	26	38
6005	25	47	12	0.6	29	30.5	43
6006	30	55	13	1	35	37	50
6007	35	62	14	1	40	42	57
6008	40	68	15	1	45	47.5	63
6009	45	75	16	1	50	53.5	70
6010	50	80	16	1	55	58.5	75
6011	55	90	18	1.1	61.5	64.2	83.5
6012	60	95	18	1.1	66.5	69.1	88.5
6013	65	100	18	1.1	71.5	74	93.5
6014	70	110	20	1.1	76.5	80.5	103.5
6015	75	115	20	1.1	81.5	85.6	108.5
6016	80	125	22	1.1	86.5	91.5	118.5
6017	85	130	22	1.1	91.5	97	123.5
6018	90	140	24	1.5	98	102	132
6019	95	145	24	1.5	103	109	137
6020	100	150	24	1.5	108	110	142
6021	105	160	26	2	114	119	151
6022	110	170	28	2	119	126	161
6024	120	180	28	2	129	136	171
6026	130	200	33	2	139	148	191

Common Options
Z	: One Shield
ZZ	: Two Shields
RZ	: One Non-Contact Seal
2RZ	: Two Non-Contact Seals
RS	: One Contact Seal
2RS	: Two Contact Seals
RS1	: One Tight sealing type
2RS1	: Two Tight sealing type
C0	: Normal Internal Clearance
C3	: Greater Than Normal
EMQ	: Electric Motor Quality
