Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33

    Buy cheap Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33 from wholesalers

    Buy cheap Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33 from wholesalers
    • Buy cheap Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33 from wholesalers
    • Buy cheap Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33 from wholesalers
    • Buy cheap Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33 from wholesalers
    • Buy cheap Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33 from wholesalers

    Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33

    Ask Lasest Price
    Brand Name : SKF, TNT, YGB, OEM
    Model Number : 23124-2CS5/VT143 Bearing
    Certification : ISO 9001:2008
    Price : Negotiation
    Payment Terms : T/T or LC
    Supply Ability : 10,000pcs per month
    Delivery Time : 5-10 working days after received your payment
    • Product Details
    • Company Profile

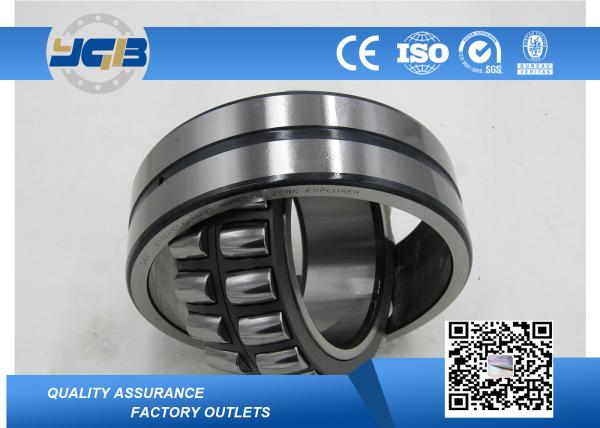

    Original Double Row Spherical Roller Bearing SKF 120x200x62 Mm 23124CC / C3W33


    Original Double Rows SKF 120x200x62 mm spherical roller bearing 23124CC/C3W33


    Product descriptoion:


    Structure:

    Bearing Material:
    SphericalChrome steelGcr15,stainless steel
    Type:Cage Material:
    Rollerbrass, steel
    Brand Name:net weight:
    skf7.63kg
    Bore Size:Lubrication:
    0 - 120 mmGrease and oil
    Outside Diameter:Hardness:
    0 - 200 mmHRC60-65
    Model Number:Clearance:
    23124C2,C3,C4
    Precision Rating:Bore type:
    P0 P6 P5 P4 P2Round
    Seals Type:Sample:
    OpenAvailable
    Number of Rows:Operating Temperature Range:
    Double RowMaximum of +390 °F
    Place of Origin:Application::
    SwedenMining

    Calculation data:


    Basic dynamic load ratingC534kN
    Basic static load ratingC0695kN
    Fatigue load limitPu71kN
    Reference speed2600r/min
    Limiting speed3400r/min
    Calculation factore0.28
    Calculation factorY12.4
    Calculation factorY23.6
    Calculation factorY02.5

    Detail Images:



    Bearing Advantage:


    1).Excellent and high-quality control


    2).Prompt delivery


    3).Competitive price


    4). Small order accepted


    5). Customers' drawing or samples accepted


    6).OEM service


    Features:


    1. SKF Spherical roller bearings with two rollers, mainly bear radial load but also can withstand axial load in either direction.

    2. A high radial load capacity, especially suitable for heavy loads or vibration, but can not bear the pure axial load.

    3. The outer ring raceway is a spherical shape, therefore the good performance of its self-aligning can compensate concentricity error.
    4. It has a good Angle of raceway and aligning performance.

    5. Good impact resistance, in general, self-aligning roller bearings allowed working speed than the low.


    Contact us:


    YGB Bearing Co., Ltd is an integrated and modern enterprise engaged in the R&D, manufacture, and sales of high-quality bearings. We are the Bearing experts serving the OEM throughout China as well as the international markets, such as deep groove ball bearing, spherical roller bearing and tapered roller bearing as well as other kinds of bearings.
