Auto Bearing 32934 Taper Roller Bearing Single Row With Size 170 *
230 * 38 mm

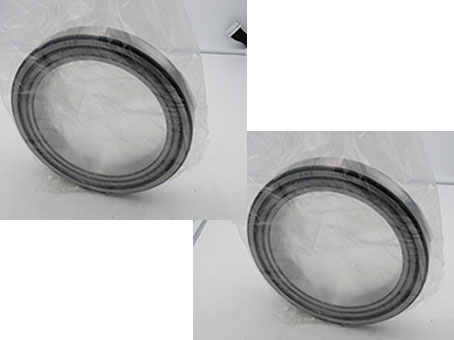

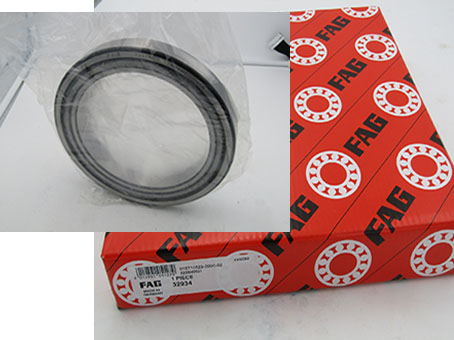

32934 Taper Roller Bearing
Description of Bearing
| Specifications of bearing 32934 |
| Product Name | Auto Bearing 32934 Taper Roller Bearing Single Row With Size 170 *
230 * 38 mm |
| Model Number | 32934 |
| Structure | Taper |
| Type | Roller |
| Material | Chrome steel GCr15 |
| Outside Diameter | 230 mm |
| Inner Diameter | 170 mm |
| Width | 38 mm |
| Weight | 4.33 kg |
| Cor(kn) | 560 |
| Cr(kn) | 280 |
| Precision Rating | P0 P6 P5 P4 P2 |
| Vibration | V1, V2, V3, V4 |
| Noisy | Z1, Z2, Z3 |
| Feature | Long Life |
| Service | OEM Customized Service |
Tapered roller bearings have tapered inner and outer ring raceways
and tapered rollers. Taper roller bearing is designed to carry both
thrust and radial loads and consist of four components: the cone,
or inner ring; the cup, or outer ring; the tapered rollers, or
rolling elements; and the cage, or roller retainer. Single row
tapered roller bearings can support radial load and axial load in
one direction. When the bearings bear radial load, they will
produce an axial component, so you need another which can withstand
axial force in the opposite direction in order to be balanced.
Application:
Tapered roller bearings are widely used in automobiles, rolling
mills, mining, metallurgy, plastics machinery, and other
industries.
Features:
High load-carrying capacity
The large number of rollers, which have an optimum conformity with
the washer raceways, enables the bearings to accommodate heavy
axial and simultaneously acting radial loads.
High speed capability
The cage designs and the optimum conformity of the rollers with the
washer raceways make the bearings suitable for relatively high
speeds.
Long service life
The tapered roller profile reduces edge stresses at the
roller/raceway contact.
Low friction
The optimized roller end/flange contact keeps frictional heat at
low level, even at high speeds
