Wind Turbine Cylindrical Roller Bearing / NU 305 ECP Pressure Roller Bearings

Ask Lasest Price
Brand Name :	YGB,OEM,SKF,NTN
Model Number :	NU 303 ECP
Certification :	ISO9001:2008
Price :	negotiation
Payment Terms :	T/T or LC
Supply Ability :	10,000pcs per month
Delivery Time :	5-10 working days after received your payment

Add to Cart

Product Details
Company Profile

Wind Turbine Cylindrical Roller Bearing / NU 305 ECP Pressure Roller Bearings

High capacity single row NU 305 ECP cylindrical roller bearings with high quality

Description :

Model	NU 305 ECP
Bearing material	GCr15/AISI52100/100Cr6
IDODW (mm)	70 x 125 x 24 mm
Seal type	double shields
Lead time	Stock or 15-30days
Weight(kg)	0.12
Basic dynamic load ratings/C	28.5 kN
Basic static load ratings/C0	20.4 kN
Limiting speed	14000 r/min
Clearance	C2,C0,C3,C4,C5
Vibration Level	V1, V2, V3, V4
Precision Rating	P0,P6,P5,
MOQ	No MOQ
Port	Shanghai
Grease	Mobil polyrex EM,Kyodo Yushi SRL
Payment terms	T/T, L/C

Drawing:

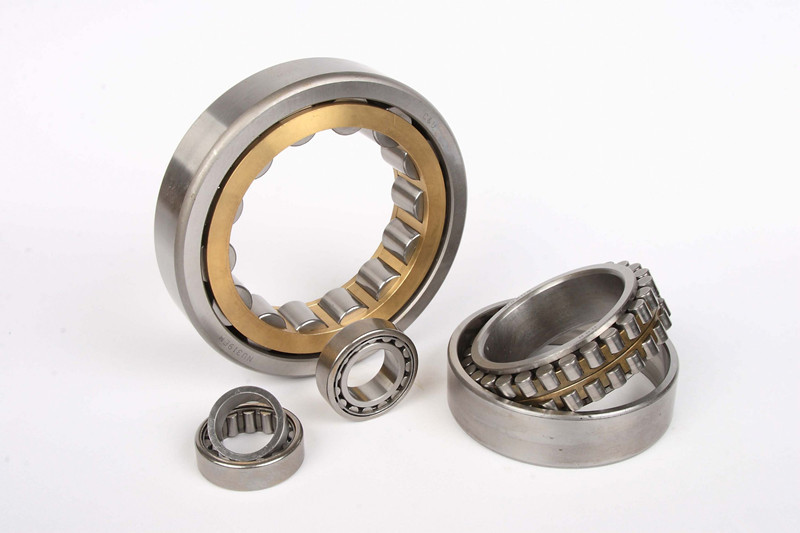

Photos:

Other Models:

Principal dimension(mm)					Weight(kg)	Bearing number	Basic Load Rating(KN)		Speed(rpm)
d	D	B	R1min	Rsmin	Weight(kg)	Bearing number	Dynamic Cr	Static Cor	reference	Limited
15	35	11	0.6	0.3	0.050	N202	12.7	10.4	20000	22000
15	35	11	0.6	0.3	0.050	NJ202	12.7	10.4	20000	22000
15	35	11	0.6	0.3	0.050	NU202	12.7	10.4	20000	22000
17	40	12	0.6	0.3	0.06	N203	17.6	14.6	10000	18000
17	40	12	0.6	0.3	0.06	NJ203	14.5	12.8	18000	18000
20	47	14	1.0	0.6	0.109	N204	16.6	13.9	17000	20000
20	47	14	1.0	0.6	0.111	NJ204	16.6	13.9	17000	20000
20	47	14	1.0	0.6	0.111	NU204EM	16.6	13.9	17000	20000
20	52	15	1.1	0.6	0.149	N304	23.1	19.2	14000	17000
20	52	15	1.1	0.6	0.153	NJ304	23.1	19.2	14000	17000
20	52	15	1.1	0.6	0.153	NU304	23.1	19.2	14000	17000
25	52	15	1.0	0.6	0.160	N205EM	27.5	26.8	11000	14000
25	52	15	1.0	0.6	0.137	NJ205	18.8	17	14000	17000
25	52	18	1.1	0.6	0.170	NJ2205V	35.3	29.4	12000	25000
25	52	15	1.0	0.6	0.160	NU205EM	27.5	26.8	11000	14000
25	62	17	1.1	1.1	0.235	N305	31.5	27.7	12000	14000
25	62	17	1.1	1.1	0.241	NJ305	31.5	27.7	12000	14000
25	62	17	1.1	1.1	0.241	NU305	31.5	27.7	12000	14000
25	62	24	1.1	1.1	0.370	NJ2305V	67	72.7	7200	10000

Drawing:

Shipping:
1). For small orders, we can send you by UPS, DHL, FEDEX, TNTOR EMS. The tracking number will be advised after delivery.
2). If order is big, we will advise you to use Air Freight or Sea Freight.
3). The balance payment should be paid before delivery to you.
4). In general, we deliver goods within 15 days.

Payment
1: T/T: 30% as deposit and 70% balance after getting a copy of B/L.
2: L/C (cannot for branded bearings.)
3: Discuss together between buyer and supplier.

Our Service:

Business model and Supply chain are OUTSTANDING!
Offering, delivering and solving issues are EFFICIENT!
Customer Satisfaction and respose are MIRACULOURS!

Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
