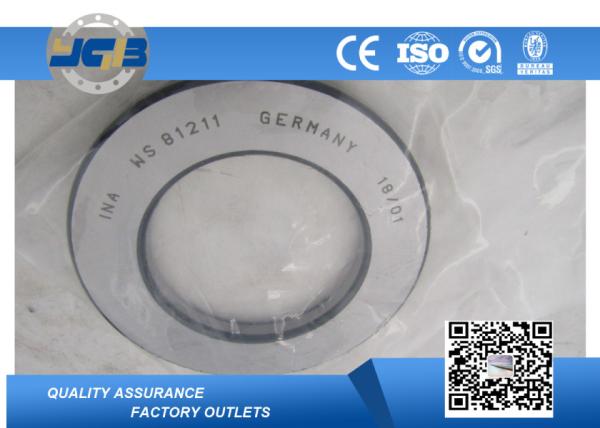

WS81211 Needle Roller Bearings , Thrust Cylindrical Roller Bearings WS Type Raceway Ring

Ask Lasest Price
Brand Name :	SKF , YGB , OEM
Model Number :	WS81211
Certification :	ISO9001:2008
Price :	negotiation
Payment Terms :	T/T , L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :	1,000,000pcs per month
Delivery Time :	within 5- 15 working days after received your payment

Add to Cart

Product Details
Company Profile

WS81211 Needle Roller Bearings , Thrust Cylindrical Roller Bearings WS Type Raceway Ring

Needle Roller Bearings, Thrust Cylindrical Roller Bearings, WS Type Raceway Ring (WS81211)

Description:

Raceway Ring Shape	Cylindrical Roller	Load Direction	Thrust
Inner Dia. d(Ø)	55	Outer Dia. D(Ø)	90
Width B(mm)	7	Inner/Outer Ring Material	Steel
Number of Raceway Ring Rows	Single Row	Size Standards	Metric System
Specifications/Environment	Standard	Rolling Element Material	Steel
Outer Ring Type	Flat	Retainer Type	No

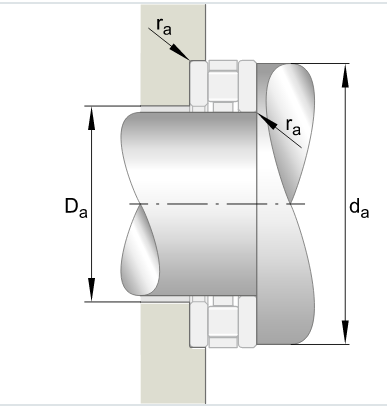

The Drawing:

Parts of the thrust roller bearing:

model number	dimension(MM)	weight(KG)
81120	100×135×25	1
81122	110×145×25	1.1
81124	120×155×25	1.23
81126	130×170×30	1.7
81128	140×180×31	1.95
81130	150×190×31	2.05
81132	160×200×31	2.2
81134	170×215×34	2.95
81136	180×225×34	3.05
81140	200×250×37	3.74
81188	440×540×80	41.5
811/530	530×640×85	55.5
811/850	850×1000×120	177.15
81206	30×52×16	0.12
81207	35×62×18	0.2
81208	40×68×19	0.27
81209	45×73×20	0.3
81210	50×78×22	0.43
81240	200×280×62	13.7
81211	55×90×25	0.708
81212	60×95×26	0.64
81213	65×100×27	0.874
81214	70×105×27	0.77
81215	75×110×27	0.979
81216	80×115×28	0.9
81217	85×125×31	1.44
81218	90×135×35	1.75
81220	100×150×38	2.58
81222	110×160×38
81224	120×170×39	2.7
81226	130×190×45	4.92
81228	140×200×46	4.55
81230	150×215×50	5
81232	160×225×51	6.2
81234	170×240×55	7.7
81236	180×250×56	8.25

Contact us:

If you want to know more about our products, please feel free to contact me. You may also visit our online company introduction which includes our latest product line. We will be happy to give you a quotation upon receipt of your detailed requirements.

I am looking forward to receiving your enquires soon. And I hope to have the opportunity to cooperate with you in the future.
