Tapered roller bearing EE640192-640261XD-TIMKEN -
488.95x660.4x206.38 mm
Product Description:
| Dimensions | |
| d - Bore | 19.2500 in488.950 mm |
| D - Cup Outer Diameter | 26.0000 in660.400 mm |
| B - Cone Width | 3.7188 in94.458 mm |
| C - Double Cup Width | 6.2500 in158.750 mm |
| T - Bearing Width across Cones | 8.1249 in206.372 mm |
| Abutment and Fillet Dimensions | |
| R - Cone Backface "To Clear" Radius1 | 0.25 in6.400 mm |
| r - Cup Front face "To Clear" Radius2 | 0.06 in1.5 mm |
| DB - Cone Backface Backing Diameter | 20.55 in522 mm |
| Da - Cup Front face Backing Diameter | 24.91 in630.43 mm |
| Aa - Cage-Cone Backface Clearance | 0.32 in8.1 mm |
| Basic Load Ratings | |
| C90 - Dynamic Radial Rating (One-Row, 90 million revolutions)3 | 138000 lbf614000 N |
| C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions)4 | 928000 lbf4130000 N |
| C90(2) - Dynamic Radial Rating (Two-Row, 90 million revolutions)5 | 240000 lbf1070000 N |
| Ca90 - Dynamic Thrust Rating (90 million revolutions)6 | 72600 lbf323000 N |
| Factors | |
| K - Factor7 | 1.9 |
| e - ISO Factor8 | 0.31 |
| Y1 - ISO Factor9 | 2.2 |
| Y2 - ISO Factor10 | 3.27 |
| G1 - Heat Generation Factor (Roller-Raceway)11 | 6320 |
| G2 - Heat Generation Factor (Rib-Roller End) | 601 |
| Cg - Geometry Factor12 | 0.231
|

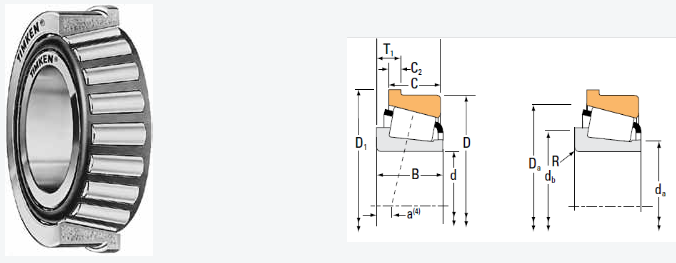

The drawings:
EE640192/640260-BB bearings are single row tapered roller bearings
with a flanged outer ring to facilitate axial location.
As different row configurations for rollers are required, tapered
roller bearings can also be divided into double row tapered roller
bearings and four-row tapered roller bearings. These bearings have
the advantage of combined load capacity in both radial and axial
environments. Compared to other bearings of the same size, these
tapered roller bearings have a relatively longer working life.
Tapered roller bearings are widely used in automotive, machine tool
spindles, mining, gear reduction units, plastics machinery and a
host of other industries.
