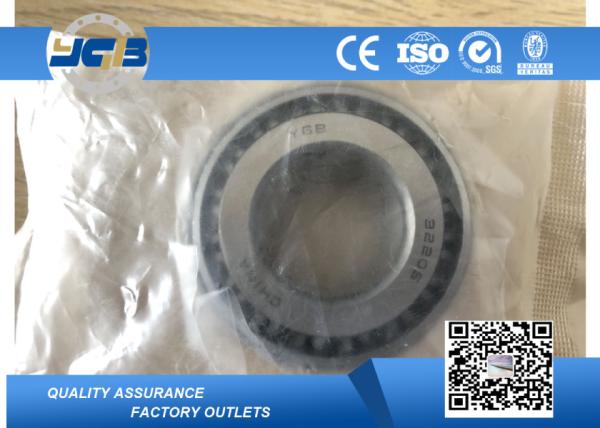

One direction Long Life Taper Roller Bearing 32205 Bearing for Machinery

Description :

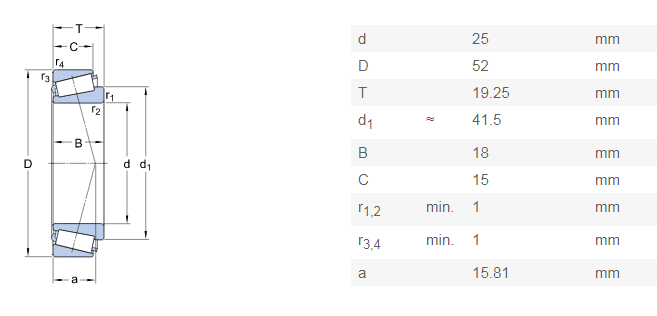

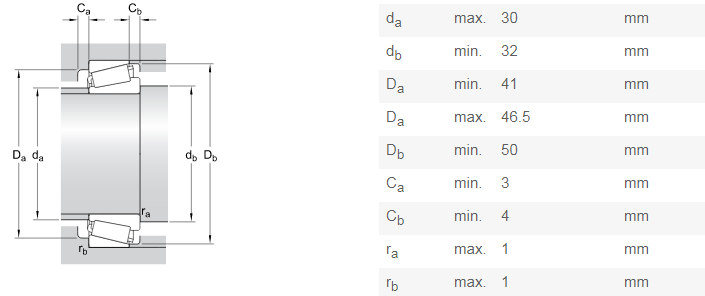

The drawings:

Single row tapered roller bearing: Inside diameter size: 20 mm ~ 1270 mm

Outside diameter size range: 40 mm ~ 1465 mm

The width size range: 15 mm ~ 240 mm

Double row circular cone roller bearings: Inside diameter size range: 38 mm ~ 1560 mm

Outside diameter size: 70 mm ~ 1800 mm

The width size range: 50 mm ~ 460 mm

Four-row circular cone roller bearings: Inside diameter size range: 130 mm ~ 1600 mm

Outside diameter size: 200 mm ~ 2000 mm

The width size range: 150 mm ~ 1150 mm

Tapered Roller Bearings Description

1. Tapered Roller Bearings belong to separated bearing, constituted by inner ring, outer ring, rollers, and cage;

2. Tapered Roller Bearings Withstand huge radial load and axial load, pass one-way axial load only;
3. The single row tapered roller bearings are used commonly;
4. The single row tapered roller bearings are divided into single row tapered roller bearing, double row tapered roller bearing and four-row tapered roller bearing;
5. The tapered roller bearing is used in automobile, rolling mill, mining, metallurgical industry, plastic machinery, etc.

FEATURES AND BENEFITS:

Tapered roller bearings have taper-formed raceways on inner and outer rings, and have taper formed rollers between raceways.

If the conical surface extension, it will eventually converge in the bearing axis on a bit.

• This kind of bearings is generally used to support combined load mainly consisting of radial load. Bearing’s axial bearing capacity by contact angle that outer raceway point of view decision.
• The greater the angle, the axial bearing capacity is the bigger.
• Tapered roller bearings are separable bearings.
• Their rollers, cage and inner ring are called cone and the outer ring is named as a cup.
• Cone and cup can be mounted respectively.
• The bearings are classified by elements as single row, double row, and multiple row bearings.
