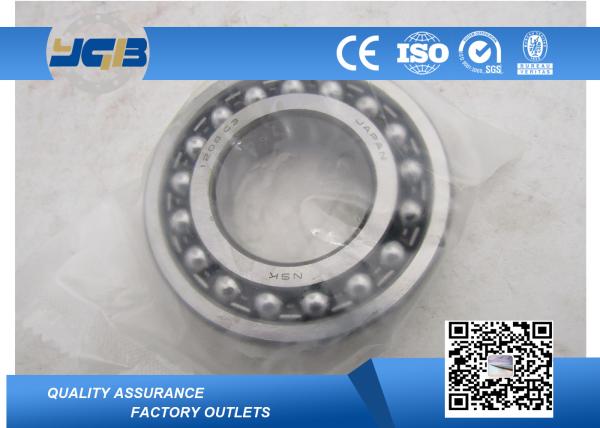

Steel plate and synthetic resin cage Self Aligning Ball Bearing
1206 1207 1208K 1209 k all types
This type can bear a large radial load and a certain axial load.
The raceway of the outer ring of this kind of bearing is spherical,
so it has the ability of alignment. When the axis is bending or
inclined, and the relative inclination between the inner ring
center line and the outer ring centerline does not exceed 1 ~2.5,
the bearing can still work.
There are two kinds of inner holes of self-aligning ball bearings:
cylindrical and conical. The taper of a conical bore is 1:12 or
1:30. In order to enhance the lubrication performance of bearings,
annular grooves and three oil holes are machined on the outer ring
of bearings.
The basic info:
| Cylindrical bore self-aligning ball bearing (10000 type) |
| Bearing Type: self-aligning ball bearing New domestic model: 1208 |
| Domestic old model: 1208 |
| Inner diameter (mm): 40 |
| Outer diameter (mm): 80 |
| Width (mm): 18 |
| Grease lubrication speed (r/min): 7500 |
| Cor(kN): 6.50 |
| Cr(kN): 19.2 |
| Oil lubrication speed (r/min): 9200 |
| Weight (KG): 0.417 |
Advantages of High sale self-aligning ball bearing 1205 1206 1207
1208K 1209 k all types bearing
Sustain radial, axial, or composite loads. Steel plate and
synthetic resin cage Self Aligning Ball Bearing 1206 1207 1208K
1209 k all types
Provide both high-running accuracy & high-speed operation
Can replace high-speed angular contact ball bearings
Simple design
Maintenance-free Longer service life
Application:
For transmission, instrumentation, electrical, household
appliances, internal combustion engines, transport vehicles,
agricultural machinery, construction machinery, engineering
machinery, roller-skating shoes, yo-yo, etc.
