SKF Medium and small high-speed Self Aligning Ball Bearing 2212,
SL183012, SL182211, SL182210
Product description:
| Basic dynamic load rating | C | | 48.8 | kN |
| Basic static load rating | C0 | | 17 | kN |
| Fatigue load limit | Pu | | 0.88 | kN |
| Reference speed | | | 11000 | r/min |
| Limiting speed | | | 8000 | r/min |
| Permissible angular misalignment | α | | 2.5 | ° |
| Calculation factor | kr | | 0.045 | |
| Calculation factor | e | | 0.24 | |
| Calculation factor | Y0 | | 2.8 | |
| Calculation factor | Y1 | | 2.6 | |
| Calculation factor | Y2 | | 4.1 | |
MassThe drawing:

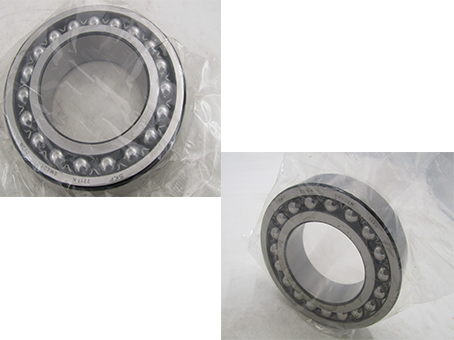

Detail Images:
Spherical Roller Bearing Information:
(Universal Series 12xx, 13xx, 22xx, 23xx)
1. Roller bearings use rolling elements to maintain the separation
between moving parts to reduce rotational friction and support
radial and axial loads.
These elements can be one of the following types: ball,
cylindrical, spherical, barrel, needle, spindle, or tapered.
2. All roller bearings are open, shielded, or sealed.
3. Sealed bearings are lubricated with oil or grease in the bearing
factory, while open and shielded bearings are meant to be
lubricated in place, with periodic reapplication of lubrication,
based on use.
4. The shield protects the working parts of the bearing from
environmental debris that may be introduced and could reduce the
ball bearing speed and lifespan.
5. This structure of type is Cylindrical and tapered holes.
Advantage:
1. Easily compensate for the error of the heart ball bearing by
different degrees of heart and shaft deflection.
2. Radial loads while also withstanding certain axial loads
3. Large temperature range
Application:
Suitable for precision instruments, low noise motors, automobiles,
motorcycles, and general machinery, etc. It is the most widely used
type of bearing in the machinery industry.
