575/572 Timken Skf Small Tapered Roller Bearings For Pump And Agricultural Machinery

    Buy cheap 575/572 Timken Skf Small Tapered Roller Bearings For Pump And Agricultural Machinery from wholesalers

    Buy cheap 575/572 Timken Skf Small Tapered Roller Bearings For Pump And Agricultural Machinery from wholesalers
    • Buy cheap 575/572 Timken Skf Small Tapered Roller Bearings For Pump And Agricultural Machinery from wholesalers
    • Buy cheap 575/572 Timken Skf Small Tapered Roller Bearings For Pump And Agricultural Machinery from wholesalers
    • Buy cheap 575/572 Timken Skf Small Tapered Roller Bearings For Pump And Agricultural Machinery from wholesalers
    • Buy cheap 575/572 Timken Skf Small Tapered Roller Bearings For Pump And Agricultural Machinery from wholesalers

    575/572 Timken Skf Small Tapered Roller Bearings For Pump And Agricultural Machinery

    Ask Lasest Price
    Brand Name : YGB,OEM,SKF,TIMKEN
    Model Number : 575/572
    Certification : ISO9001:2008
    Price : negotiation
    Payment Terms : T/T or LC
    Supply Ability : 10,000pcs per month
    Delivery Time : 5-10 working days after received your payment
    • Product Details
    • Company Profile

    575/572 Timken Skf Small Tapered Roller Bearings For Pump And Agricultural Machinery


    575/572 Timken Skf Stainless Steel Tapered Roller Bearings For Pump And Agricultural Machinery


    Description :

    Model575/572
    Bearing materialGCr15/AISI52100/100Cr6/Stainless Steel
    Lead timeStock or 15-30days
    Weight(kg)2.43
    Basic dynamic load ratings/C227 kN
    Basic static load ratings/C0280 kN
    Limiting speed4500 r/min
    ClearanceC2,C0,C3,C4,C5
    Vibration LevelV1, V2, V3, V4
    Precision RatingP0,P6,P5,
    MOQNo MOQ
    PortShanghai
    GreaseMobil polyrex EM, Kyodo Yushi SRL
    Payment termsT/T, L/C

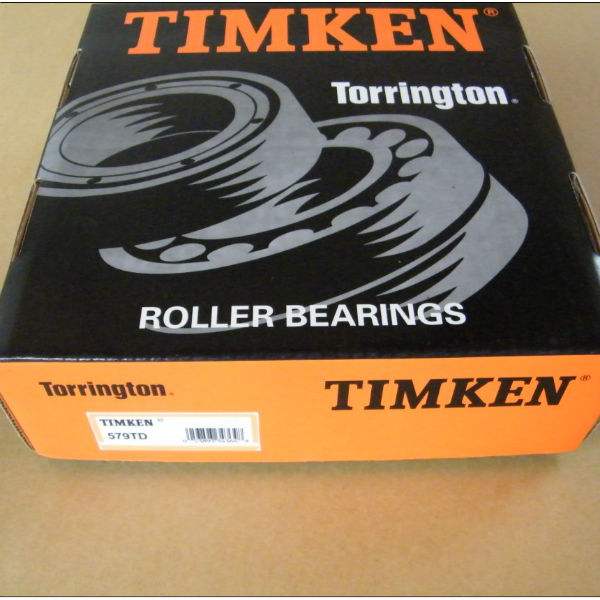

    Photo:

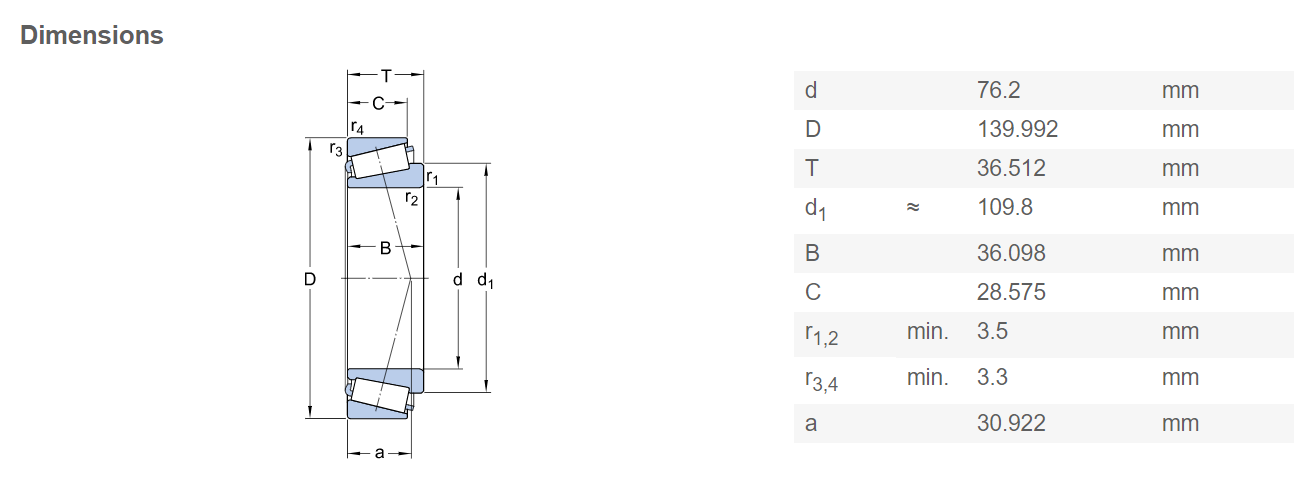

    Drawing:

    Application:


    Tapered roller bearings mainly bear combined radial and axial loads. Bearing capacity depends on the raceway angle of the outer ring. This kind of bearing belongs to the separate type bearing, according to the number of columns of the rolling body in the bearing, it is divided into single row, double row and four rows of tapered roller bearing. The clearance of single-row tapered roller bearing shall be adjusted during installation. Double-row and four-row tapered roller bearing clearance have been given according to the requirements of the user at the time of delivery, without user adjustment.
    Cone roller bearings have cone inner ring and outer ring raceway, cone roller arranged between the two. All projection lines on the surface of the cone meet at the same point on the bearing axis. This design makes tapered roller bearings especially suitable for bearing compound (radial and axial) loads. The axial load capacity of the bearing is largely determined by the contact Angle; The larger the Angle, the higher the axial load capacity. The Angle is expressed by the calculated coefficient e. The greater the value of e, the greater the contact Angle, the greater the bearing's suitability to bear axial load.
    Tapered roller bearings are usually separable, that is, the tapered inner ring assembly consisting of the inner ring with the roller and cage assembly can be installed separately from the tapered outer ring (outer ring).
    Cone roller bearings are widely used in automobile, rolling mill, mining, metallurgy, plastic machinery, and other industries.


    Payment
    1: T/T: 30% as deposit and 70% balance after getting a copy of B/L.
    2: L/C (cannot for branded bearings.)
    3: Discuss together between buyer and supplier.


    Our Main Products:

    Deep groove ball bearings
    Cylindrical roller bearings
    Needle roller bearings
    Thrust ball bearings
    Thrust roller bearings
    Spherical roller bearings
    Angular contact ball bearings



    Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
