Single Row Cylindrical Roller Bearing NU 234 ECM 170 x 310 x 52 MM For Hoisting and Conveying Machinery

Description :

Photo:

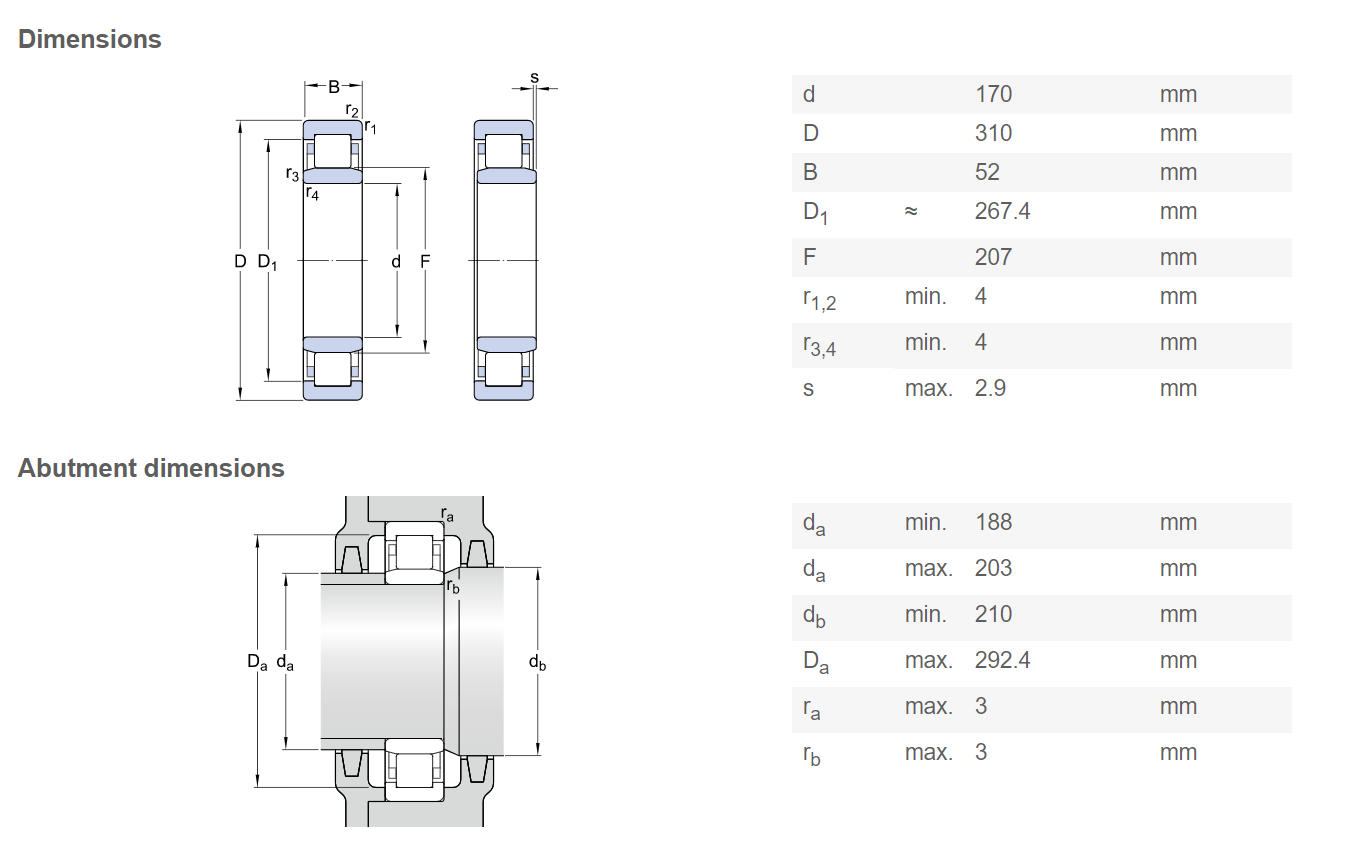

Drawing:

Features:

1. Roller and raceway for the line contact or offline contact, radial bearing capacity big, apply to under heavy load and impact load

2. The friction coefficient is small, suitable for high speed, the limit speed close to deep groove ball bearings

3. N and NU type axial movement, can adapt to shaft caused by thermal expansion or installation error and shell the change of relative position, can be used for free end bearing

4. On the shaft or hole of the processing and the demand is higher, the bearing outer ring after installation axis relative deviation should be kept under strict control, so as not to cause contact stress concentration

5. Inner ring or outer ring separable, easy to install and disassemble

The following methods are commonly used to adjust radial clearance of fully loaded cylindrical roller bearings:

1. For the side gap of the cylindrical and oval bearing bush, it can be adjusted by hand grinding and scraping or by repairing and scraping after turning the parting surface of the bearing with mat.
2. For the top gap of the cylindrical and oval bearing bush, manual grinding and scraping can be adopted or the method of adding pad to the parting surface of bearing can be adjusted when conditions permit.
3. For multi-oil wedge-fixed bearing bush, in principle, it is not allowed to repair and adjust the clearance of bearing bush. If the clearance is not suitable, new tiles should be replaced.
4. For tilting type bearing bush with the multi-oil wedge, it is not allowed to repair and scrape tile block. If the gap is not suitable, the tile block should be replaced. For the tile with adjustable thickness, the amount of tile can be adjusted by adding a stainless steel pad under the adjustment block behind the tile, or by reducing the thickness of the adjustment block. Note that the thickness error between the tiles in the same group should be less than 0.01mm for the tilting type of multi-oil wedge bearing bush.

Shipping:

1). For small orders, we can send you by UPS, DHL, FEDEX. The tracking number will be advised after delivery.
2). If an order is big, we will advise you to use Air Freight or Sea Freight.
3). The balance payment should be paid before delivery to you.
4). In general, we deliver goods within 15 days.

Payment:

1: T/T: 30% as deposit and 70% balance after getting a copy of B/L.
2: L/C (cannot for branded bearings.)
3: Discuss together between buyer and supplier.

YGB Bearing Co., Ltd is an integrated and modern enterprise engaged in the R&D, manufacture, and sales of high-quality bearings. We are the Bearing experts serving the OEM throughout  China as well as the international markets, such as deep groove ball bearing, spherical roller bearing and tapered roller bearing as well as other kinds of bearings.

Since its inception, thanks to the support and love of people from all walks of life, the company has cooperated with hundreds of customers, in line with the principle of "quality first, honesty first" to win the praise of customers!
