Deep Groove Ball Bearing SKF 61840 Double Seals 200 X 250 X 24 MM For Electrical Machinery

Description:

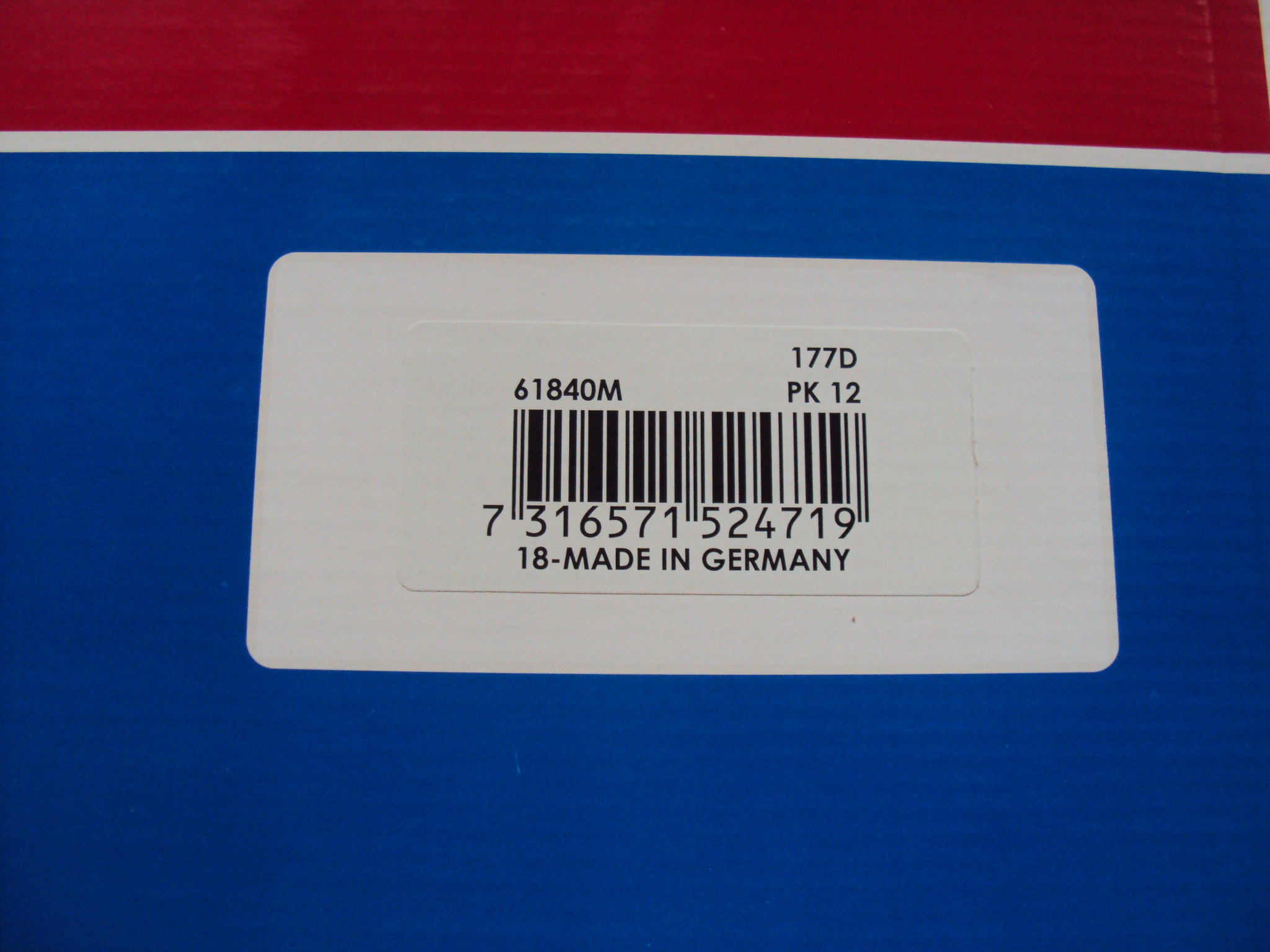

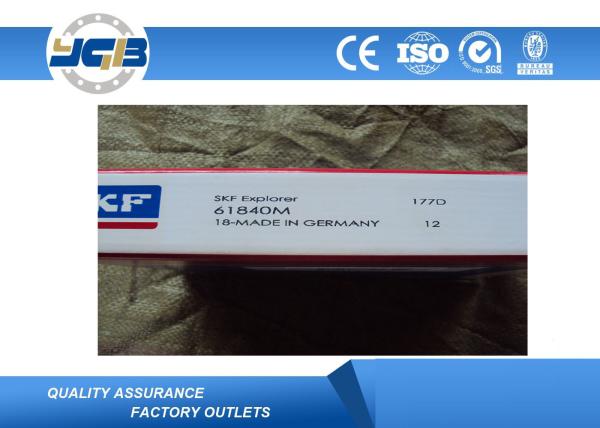

Product photos:



Drawing:

Installation Method:

1: pressing fit: Bearing inner ring and shaft tight fit, outer ring and bearing hole is a loose fit, available press the bearing pressure equipment in the shaft first, then the shaft together with the bearing load bearing hole, when pressed on the bearing inner ring end face, cushion the assembling casing made of a soft metal material (copper or mild steel), bearing outer ring and bearing hole tight fit, inner ring and the shaft is a loose fit, the bearing can be pressed into the bearing hole first, then assembling casing diameter should be slightly less than the diameter of a hole. If the bearing ring and shaft and hole is a tight fit, install an indoor ring and outer ring to pressure into the shaft and hole, at the same time the assembly casing shall be constructed to tighten the end faces of the inner and outer rings of the bearing simultaneously.

2: heating cooperates: through a heating bearing or bearing seat, by using thermal expansion will fit into a loose fit method of installation. The installation method is a kind of common and energy saving. This method is suitable for interference quantity larger the installation of the bearing, the bearing before hot charging type or separable bearing ring into the fuel tank even heat 80-100 ℃ and then loaded on the shaft, as soon as possible out of the oil to prevent inner ring after cooling end face and the shoulder joint is not tight, to axial bearing cooling can then tighten. Bearing outer ring and light metal bearing seat tight fit, by heating the hot charging method of the bearing, can avoid the mating surface scratch. Heating tank with bearing and should be at a certain distance from the bottom of a mesh, or hanging hooks in the bearings, bearing on the bottom, in case of heavy impurities into the bearing or uneven heating, fuel tank must have a thermometer, strictly control the oil temperature shall not exceed 100 ℃, in order to prevent the tempering effect, reduce the hardness of the ring.

Packaging & Shipping;
Packaging Details
1, Industry packaging: Plastic tube + Carton + pallet
2, Commercial packaging: Single color box+Carton+pallet
3, According to the requirement of customers'

Payment terms :
1). 30%T/T in advance, 70% balance has to be paid before the first shipment.
2).100% L/C at sight
3). Other payment terms depend on our discussion

Main Product:
Deep groove ball bearings
Cylindrical roller bearing
Tapered roller bearing
Angular contact ball
Self-aligning ball bearing
Spherical roller bearing
Spherical bearings
Bearing Housing
Need roller bearing

Dear friend, any questions please feel free to contact us, let's learn and grow together in bearing worlds!
