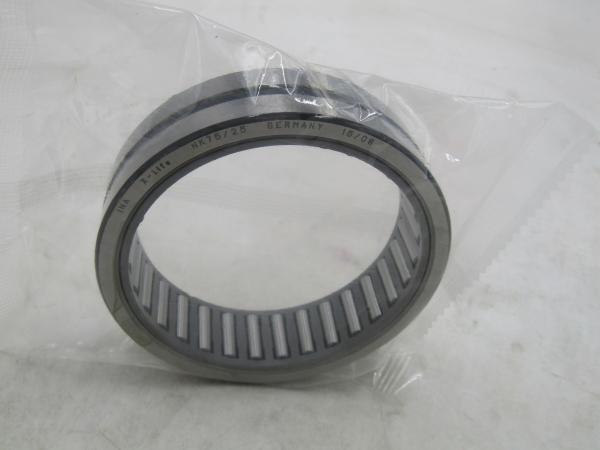

OEM or NKS65 Solid Collar Needle Roller Bearing Without Inner Ring
65x85x28 mm
Description:
| Product Name | Needle Roller Bearing |
| Material | Chrome steel |
| Brand name | YGB or OEM |
| Series | NKS65 |
| Basic static load rating | 114 kN |
| Fatigue load limit | 14.6 kN |
| Reference speed | 6000 r/min |
| Limiting speed | 6700 r/min |
| Mass bearing | 0.36 Kg |
| Vibration | V1, V2, V3, V4 |
| Precision Rating | P0, P6,P5,P4,P2 |
| Quality standard | ISO9001, ABEC-1(Z1V1) |
| Tolerance Grades | ABEC-1 (P0), ABEC-3 (P6), ABEC-5(P5) |
| Package | A: tube package+outer carton+pallets |
| B: single box+outer carton+pallet |
| C: According to your's requirement |

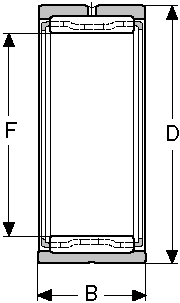

The Drawing:
| Dimensions (metric) | F | 65 |  Without Inner Race |
| D | 85 |
| B | 28 |
Approx.
Wgt. lbs | .080 |
| Interchange | INA | NKS 65 |
| SKF | NKS 65 |
| Torrington | NKS 65 |
NA 6913 Needle roller bearings (needle bearing) is a cylindrical
roller with a roller bearing, relative to its diameter, roller both
thin and long. This is called needle roller. Despite having a
smaller cross-section, has a higher load-bearing capacity, equipped
with a thin and long needle bearing roller (roller diameter
D<5mm, L / D>2.5, L is the length of the roller), therefore
radial structure is compact, its diameter size and load capacity
and other types of bearings, minimum diameter, especially for
radial mounting dimensions restricted support structure.
According to different occasions, can be used without inner ring of
the bearing or needle roller and cage assembly, when the surface of
the journal bearing surface and shell holes as bearing directly
match the outer rolling surface, in order to ensure the load
capacity and operating performance and have the same ring bearing,
shaft or housing bore raceway surface hardness, machining accuracy,
and surface quality should be similar roller bearing rings. Such
bearings can only bear radial load.
The most popular ranges in this product type are:
NK, NKS, RNA series - Without Inner Rings
RNA.....-2RS - Without Inner Rings but with integral lip seals
NKI, NA, NKIS - With Inner Rings
NA.....-2RS - With Inner Rings and integral lip seals
Application:
Needle roller bearings are widely used in cars, compressors,
construction, electric motors, food industry, home appliances, etc.
As a rolling element, it turns the world.
