AXK Series Thrust Washer Axial Needle Bearing AXK0515 AXK4060 Flat For Machine

Ask Lasest Price
Brand Name :	SKF , YGB , OEM
Model Number :	AXK 4060
Certification :	ISO9001:2008
Price :	negotiation
Payment Terms :	T/T , L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :	1,000,000pcs per month
Delivery Time :	within 5- 15 working days after received your payment

Add to Cart

Product Details
Company Profile

AXK Series Thrust Washer Axial Needle Bearing AXK0515 AXK4060 Flat For Machine

AXK series thrust washerAXK0515 AXK4060 flat needle roller bearing for machine

Parameter:

m	16 g	Mass
Ca	28000 N	Basic dynamic load rating, axial
C0a	114000 N	Basic static load rating, axial
Cua	12100 N	Fatigue limit load
nG	5600 1/min	Limiting speed
nϑr	2340 1/min	Reference speed
	AS4060	Allocated axial bearing washer

The Drawing:

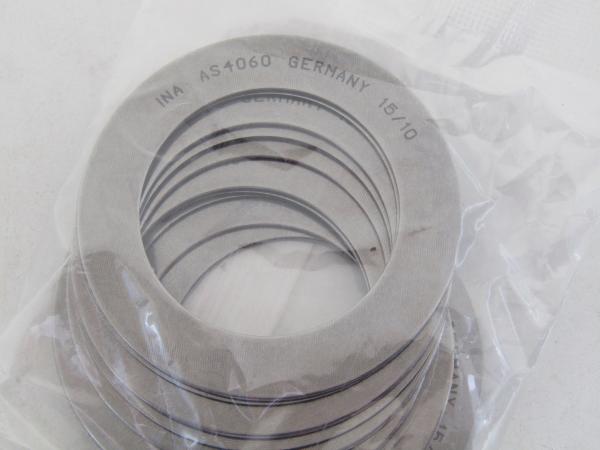

Thrust washer AS4060 AXK4060 needle roller bearing

1. The needle roller thrust bearings are units comprising needle roller and cage thrust assemblies and axial bearing washers with common design or with a centering spigot.

2. They can be combined with drawn cup needle roller bearings and needle roller bearings. The axial running surface for the needle roller and cage assembly must be hardened and ground.

3. The small diameter deviation of the rollers within one assembly enables the bearings to accommodate heavy axial loads and shock loads.

4. These bearings provide a high degree of stiffness within a minimum axial space.

Related Products:

Bearing Designation				Basic load rating
Washer	Locating washer	Washer	Locating washer	d	D1	D	d1	B1	B
Washer	Locating washer	Washer	Locating washer	mm
AS 0414				4		14		1
AS 0515				5		15		1
AS 0619			LS 0619	6		19		1	2.75
AS 0821			LS 0821	8		21		1	2.75
AS 1024			LS 1024	10		24		1	2.75
AS 1226			LS 1226	12		26		1	2.75
AS 1528	GS 811 02	WS 811 02	LS 1528	15	16	28	28	1	43866
AS 1730	GS 811 03	WS 811 03	LS 1730	17	18	30	30	1	2.75
AS 2035	GS 811 04	WS 811 04	LS 2035	20	21	35	35	1	2.75
AS 2542	GS 811 05	WS 811 05	LS 2542	25	26	42	42	1	3
AS 3047	GS 811 06	WS 811 06	LS 3047	30	32	47	47	1	3
AS 3552	GS 811 07	WS 811 07	LS 3552	35	37	52	52	1	3.5
AS 4060	GS 811 08	WS 811 08	LS 4060	40	42	60	60	1	3.5
AS 4565	GS 811 09	WS 811 09	LS 4565	45	47	65	65	1	4
AS 5070	GS 811 10	WS 811 10	LS 5070	50	52	70	70	1	4
AS 5578	GS 811 11	WS 81111	LS 5578	55	57	78	78	1	5
AS 6085	GS 811 12	WS 811 12	LS 6085	60	62	85	85	1	4.75
AS 6590	GS 811 13	WS 811 13	LS 6590	65	67	90	90	1	5.25
AS 7095	GS 811 14	WS 811 14	LS 7095	70	72	95	95	1	5.75
AS 74100	GS 811 15	WS 811 15	LS 75100	75	77	100	100	1	5.75
AS 80105	GS 811 16	WS 811 16	LS 80105	80	82	105	105	1	5.75
AS 85110	GS 811 17	WS 811 17	LS 85110	85	87	110	110	1	6.5
AS 90120	GS 811 18	WS 811 18	LS 90120	90	92	120	120	1	7
AS 100135				100		135		1
AS 110145				110		145		1
AS 12015				120		155		1
AS 130170				130		170		1
AS 140180				140		180		1
AS 150190				150		190		1
AS 160200				160		200
