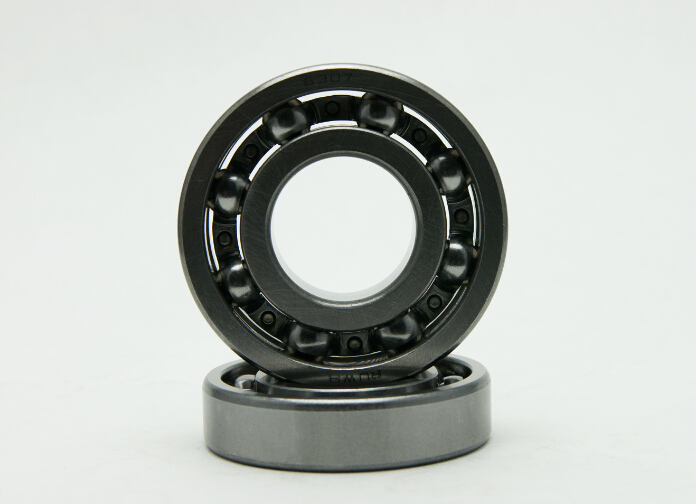

Single Row, double sealed, Deep Groove Ball Bearing 6203, 6200
Bearing, Gcr15 material
Description
1. Brand: YGB,OEM,SKF,NTN
2. Structure: Deep Groove
3. Type: ball
4. Bore Size: 17mm
5. Outer Diameter: 40mm
6. Width: 12mm
7. Model Number: 6203
8. Precision Rating: ABEC1(P0), ABEC3(P6), ABEC5(P5)
9. Seals Type: Open, Z, ZZ, RZ, 2RZ, RS, 2RS
10. Number of Rows: Single Row
11. Place of Origin: Wuxi, China (Mainland)
12. Service: OEM
13. Metal: Chrome steel or Stainless steel
14. Vibration velocity: V1, V2, V3
15. Vibration acceleration: Z1, Z2, Z3
16. Packaging Details: Plastic Tube, Carton, Wooden Pallets,
According to the requirements of clients
17. Delivery Detail: 5-10days.
Packing:
1. Industrial packaging: a). plastic tube + carton + pallet;
b). plastic bag + kraft paper + carton + pallet;
2. Commercial packing: plastic bag + color box + carton + pallet;
3. According to the requirement of customer.
Shipping:
1) Less than 30KGS, we will send by express. ( Door to Door,
Convenient )
2) Between 31 - 100 KGS, we will send by air transport. ( Fastest
and safest, but expensive )
3) More than 100 KGS, we will send by sea. ( Cheapest, on time )
6200 Series sizes
N0. | Bore | O.D | Width | Chamfer | Load Rating | Maximuum Seed | Weight |
mm | mm | mm | mm | Dynamic
Cr | Static
Cor | Grease
r/min | Oil
r/min | Kg/pcs |
624 | 4 | 13 | 5 | 0.2 | 1.15 | 0.4 | 36000 | 45000 | 0.0032 |
625 | 5 | 16 | 5 | 0.3 | 1.76 | 0.680 | 32000 | 40000 | 0.0050 |
626 | 6 | 19 | 6 | 0.3 | 2.34 | 0.885 | 28000 | 36000 | 0.0080 |
627 | 7 | 22 | 7 | 0.3 | 3.35 | 1.400 | 26000 | 34000 | 0.0130 |
628 | 8 | 24 | 8 | 0.3 | 4.00 | 1.590 | 24000 | 32000 | 0.0170 |
629 | 9 | 26 | 8 | 0.3 | 4.55 | 1.960 | 22000 | 30000 | 0.0190 |
6200 | 10 | 30 | 9 | 0.6 | 5.10 | 2.390 | 19000 | 26000 | 0.0300 |
6201 | 12 | 32 | 10 | 0.6 | 6.10 | 2.750 | 18000 | 24000 | 0.0360 |
6202 | 15 | 35 | 11 | 0.6 | 7.75 | 3.600 | 17000 | 22000 | 0.0460 |
6203 | 17 | 40 | 12 | 0.6 | 9.60 | 4.600 | 16000 | 20000 | 0.0650 |
6204 | 20 | 47 | 14 | 1.0 | 12.80 | 6.650 | 14000 | 18000 | 0.1070 |
6205 | 25 | 52 | 15 | 1.0 | 14.00 | 7.850 | 12000 | 16000 | 0.1250 |
6206 | 30 | 62 | 16 | 1.0 | 19.50 | 11.300 | 10000 | 13000 | 0.2010 |
Useage
1. Automotive
2 household appliances
3 pump
4 gearboxes
5 electric motors and generators
6 electric power tools
7 heavy vehicles
8 compressors
9 office equipment
Trade Terms,
1. T/T 30% as deposit and balance to copy of B/L
2. L/C at sight
3. Delivery Time: 5-10 days upon receipt of deposit
4. Free sample can be sent in 3-5 days
5. Shipping freight are quoted under your requires
6. Shipping port: Wuxi/Shanghai
7. Discount are offered based on order quantities
Quality Assurance
Product quality is the lifeline of our enterprise. In order to
process the leading technology, we implement the quality control
system and establishes a technical and strict inspection team. As
per the regulation of
three-dimensional management and multiple checks, each product was
inspected by the producer, inspector, inspection development and
quality development laboratory, especially to the important
inspection items and precision inspection item.
Our Service
High quality, good credit, and excellent service are the tenets of
our factory, customers’ satisfaction is our lifeline, as well as
our highest honour. We are always doing our best to meet customers’
requirements.
Other Bearing Type
1. Deep groove ball bearing
2. Cylindrical roller bearing
3. Taper roller bearing
4. Spherical roller bearing
5. Angular contact ball bearing
6. Self-aligning ball bearing
7. Needle roller bearing
8. Thrust ball/roller bearing
