High Precision NKS32 Style Standard Needle Roller Bearings without
Inner Ring
Description:
| Product Name: | AXK6085 needle roller bearing 6085 bearing |
| Basic dynamic load rating | 37.5kN |
| Basic static load rating | 232kN |
| Reference speed | 2200 r/min |
| Limiting speed | 4300 r/min |
| Material: | Chrome steel |
| Certification: | ISO9001: 2008 |
| Feature: | The thick outer ring provides maximum load capacity and shock
resistance with a relatively small radial cross-section. |
A needle roller bearing is a bearing that uses small cylindrical
rollers.
The typical structure consists of a needle cage that orients and
contains the needle rollers, the needle rollers themselves, and an
outer race (sometimes the housing itself).
Radial needle bearings are cylindrical and use rollers parallel to
the axis of the shaft. Thrust needle bearings are flat and use a
radial pattern of needles.
Full complement bearings have solid inner and outer rings and
rib-guided cylindrical rollers. Since these bearings have the
largest possible number of rolling elements, they have extremely
high radial load carrying capacity and are suitable for
particularly compact designs.

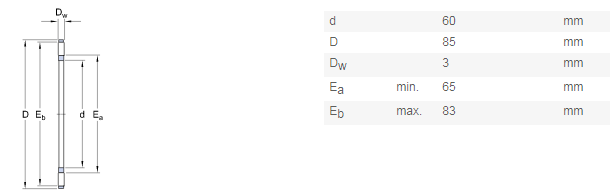

The Drawing:
Aplication:
• Paper moving for copiers, fax machines, paper towel dispensers,
etc.
• Exercise equipment
• Two-speed gearboxes
• Rack indexing drives
• Converters, non-return devices, and transcendental clutches.
• Fishing Reels, RC Cars, RC Helis, RC Engines
Related Products:
| Shaft Diameter(mm) | Bearing Type | Boundary Dimensions(mm) | Weight(g) |
| Current Type | Original Type | d | D | B |
| 8 | AXK0821 | | 8 | 21 | 2 | 2 |
| 10 | AXK1024 | | 10 | 24 | 2 | 3 |
| 12 | AXK1226 | | 12 | 26 | 2 | 3 |
| 15 | AXK1528 | | 15 | 28 | 2 | 4 |
| 17 | AXK1730 | | 17 | 30 | 2 | 4 |
| 20 | AXK2035 | | 20 | 35 | 2 | 5 |
| 25 | AXK2542 | | 25 | 42 | 2 | 7 |
| 30 | AXK3047 | | 30 | 47 | 2 | 8 |
| 40 | AXK4060+2AS | | 40 | 60 | 3 | 16 |
| 45 | AXK4565 | | 45 | 65 | 3 | 18 |
| 55 | AXK5578 | | 55 | 78 | 3 | 28 |
| 60 | AXK6085 | | 60 | 85 | 3 | 33 |
| 70 | AXK7095 | | 70 | 95 | 4 | 60 |
| 75 | AXK75100 | | 75 | 100 | 4 | 61 |
| 90 | AXK90120 | | 90 | 120 | 4 | 86 |
| 100 | AXK100135 | | 100 | 135 | 4 | 104 |
| 110 | AXK110145 | | 110 | 145 | 4 | 122 |
| 130 | AXK130137 | | 130 | 137 | 5 | |
| 150 | AXK150190 | | 150 | 190 | 5 | 232 |
| 160 | AXK160200 | | 160 | 200 | 5 | 246 |
