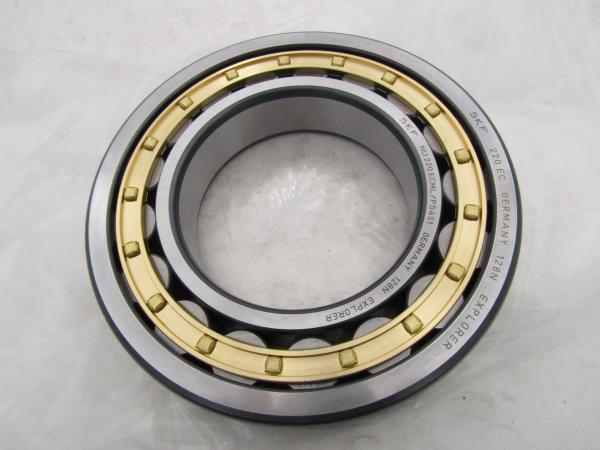

NJ 220 E - Cylindrical Roller Bearing - Straight Bore, 100 mm ID,
180 mm OD, 34 mm Width, C0 Internal Clearance
Product description:
The majority are single row bearings with a cage. Single and double
row full complement bearings (without cage) complete the SKF
standard assortment for general engineering
Polyamide cage that can accommodate heavy radial loads and operate
at high speeds
Full complement bearings are suitable for very heavy radial loads
at moderate speeds
NJ: Two outer flanges, one inner flange
Specification:
| Bore diameter | 100 mm |
| Precision rating | RBEC 1 (ISO Class Normal) |
| Outside diameter | 10 mm |
| Maximum rpm | 4550 RPM |
| Overall width | 34 mm |
| Bearing material | Steel |
| Flanges | (2) Outer Ring, (1) Inner Ring |
| Cage material | Polyamide |
| Bore type | Straight |
| Finish/coating | Uncoated |
| Number of rows | 1 |
| Closure type | closure type: Open |
| Internal clearance | C0 |
| Application | Piston Type Machines, Rolling Mills, Spindles/Machine Tools |
| Ring separation | ring separation: Separable Ring |
| Outer ring width | 34 mm |
| Operating temperature range | Maximum of +300 F |
| Fillet radius | 2 mm |
| Dynamic load capacity | 25 kN |
| Series | NJ2 |
| Static load capacity | 305 kN |
Are single row cylindrical roller bearings and have two fixed ribs
on the outer ring and one smooth inner ring. This design allows an
axial displacement in certain limits, of the shaft in relation to
the housing. Therefore, NJ Series rolling bearings are used in
non-locating bearing units. Also, the NJ Series bearings have no
virtually thrust capacity.
Design Attributes
The design has a cylindrical inner ring and two ribs on the outer
ring, making type NJ bearings well suited for use as floating
bearings.
Separable components simplify mounting and removal.
Accommodates axial expansion and contraction.
It provides axial displacement between rings with minimum friction
while rotating.
Supports heavy radial loads.
Not suitable for applications with thrust loads.
The drawing
Cylindrical roller bearings are available in many designs, series,
and sizes. The majority are single row bearings with a cage.
High-capacity bearings, double row bearings, multi-row bearings,
single, double and multi-row full complement bearings (without a
cage) and split bearings complete the international standard
assortment provided here.
Bearings with a cage can accommodate heavy radial loads, rapid
accelerations and high speeds. Full complement bearings incorporate
a maximum number of rollers and are therefore suitable for very
heavy radial loads at moderate speeds. CHIK high-capacity
cylindrical roller bearings combine the high load-carrying capacity
of a full complement bearing with the high-speed capability of a
bearing with a cage.
1. Cylindrical roller bearings feature high radial load because the
rollers and raceway are in linear contact
2. The NU and N types exhibit their best performance when used as
free side bearings since they adjust to the shaft axial movement,
to a certain extent, relative to the housing position
3. The NJ and NF types carry a certain degree of axial displacement
in both directions so they also use
das free side bearings
4. Models available: NU, NG, NUP, N, NF, NH, NNU, NIV
5. Moreover, we can manufacture these bearings according to
customer's drawings and samples.
Single row cylindrical roller bearings as for the ring ribs divided
into N-type, NU type, NJ and NUP type and so on. Cylindrical roller
bearings withstand heavily capacity of the radial load. But
according to the structure of ring ribs can also be under some
one-way or two-way axial load.NN and NNU type double row
cylindrical roller bearings are compact structure, which with
strong rigidity and bears load capacity. Even if it has to bear a
heavy load, its deformation is small. It mostly used for machine
tool spindle bearing.
FC, FCD, FDCP-type four-row cylindrical roller bearings can bear
greater radial load, mostly using for rolling mill and other heavy
machinery.
Application
- High radial loads and high speeds
- Gearbox
- Gearbox
- Worm gear shaft
- Spring plates
Relatives
| ISO | Dimensions (mm) | | Basic Load Rating (N) | | Limiting speed ( r/min ) | | Weight |
| | | | | | Lubrication | | |
| d | D | B | Dyn. C | Stat. C0 | Grease | Oil | |
| NJ1006 | 30 | 55 | 13 | 18700 | 18400 | 13000 | 15000 | 0.124 |
| NJ1007 | 35 | 62 | 14 | 22600 | 23200 | 11000 | 13000 | 0.187 |
| NJ1008 | 40 | 68 | 15 | 24900 | 25700 | 10000 | 12000 | 0.229 |
| NJ1009 | 45 | 75 | 16 | 31000 | 33800 | 9200 | 11000 | 0.297 |
| NJ1010 | 50 | 80 | 16 | 33600 | 36800 | 8400 | 9900 | 0.314 |
| NJ1011 | 55 | 90 | 18 | 37400 | 43800 | 7600 | 8900 | 4.57 |
| NJ1012 | 60 | 95 | 18 | 42100 | 50000 | 7000 | 8300 | 0.49 |
| NJ1013 | 65 | 100 | 18 | 43300 | 52900 | 6600 | 7800 | 0.519 |
| NJ1014 | 70 | 110 | 20 | 57900 | 70400 | 6100 | 7200 | 0.72 |
| NJ1015 | 75 | 115 | 20 | 63600 | 78100 | 5700 | 6800 | 0.75 |
