High Quality 22222 E Spherical Roller Bearings 110*200*53mm,
Durable and High Load Carrying.
Description:
| Product Name | SKF One Way Bearing 22222 E 22222 C/C3 W33 |
| Bearing Type | Spherical Roller Bearing |
| Bearing Material | Chrome Steel Bearing |
| Cage Material | Steel Cage |
| Certificate | ISO9001 |
| Tolerance Standard | GB/T307(ISO492) |
| Hardness | HRC60-65 |
| H.S Code | 84822000 |
| Inspection By | PPAP Document is Accept |
| Main Market | Europe, America, etc. |
| Service Range | OEM brand, Specially produce a diversified brand for customer
Require |

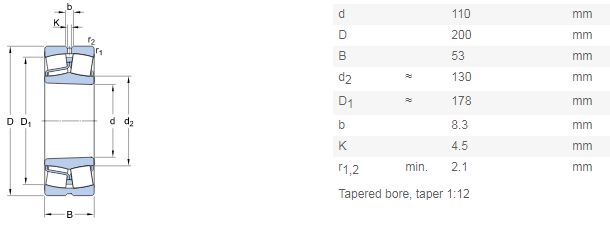

The Drawing:
Spherical roller bearings
Spherical roller bearings have two rows of symmetrical rollers, a
common sphered outer ring raceway and two inner ring raceways
inclined at an angle to the bearing axis. The center point of the
sphere in the outer ring raceway is at the bearing axis.
Other Designs and Variants Type
Double row spherical roller bearings
*Most widely used.
Single row spherical roller bearings
*Radial load and compensation misalignment
Split spherical roller bearings
*Carrying out replacement work quickly and easily
Sealed spherical roller bearings
*Harsh environment applications
Spherical roller bearings for vibratory machinery
*Vibration machinery application
Extended Inner Ring spherical roller bearings
*Special application
Spherical Roller Bearing Features:
1. self-aligning
2. cylindrical bore
3. high-temperature resistance
4. high capacity of vibration
5. shock resistance
6. can bear fair axial load
7. Low friction, Low noise
Application:
Large-scale manufacturing industries such as oil fields, rotary
cranes, coal mines, ball mills, heavy mining machinery,
metallurgical machinery, mining machinery, lifting machinery,
loading and unloading machinery, industrial and mining vehicles,
and cement equipment.etc.
Relatives:
| Model | d | D | H | Cr | Cor | weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (kg) |
| 29415 | 75 | 160 | 51 | 438 | 1270 | 29.9 |
| 29432 | 160 | 320 | 95 | 1480 | 4860 | 36.2 |
| 29422 | 110 | 230 | 73 | 845 | 2610 | 14.7 |
| 29436 | 180 | 360 | 109 | 1870 | 6110 | 52.6 |
| 29412 | 60 | 130 | 42 | -- | -- | -- |
| 29317 | 80 | 150 | 39 | -- | -- | -- |
| 29230 | 150 | 215 | 39 | -- | -- | -- |
| 29438 | 190 | 380 | 115 | 2040 | 6730 | 60.7 |
Why Choose Us
1). World-Class Bearing: We provide our customer with different
kinds of Standard and Non-standard World-Class Bearing
2). Technical Testing: Company will check the products one by one
before sending you.
3). Technical Assistance: Company can provide you all related
technical data if you needed
4). Quick Delivery: You will get your goods within 7 working days
after your payment.
5). After-sale service: we support 24 Hours after-sale service
displacement on the radial clearance.
Heavy industrial thrust roller bearings 29414E could meet more
precise specifications and higher robustness. These rigorous
demands increase the production cost. Normally this bearing item
has a higher price. But buy from us, you could save 20%-30%. Just
contact us right now.
