Spherical roller bearings 22213 22214 22216 22217 22218 22219 22220
Spherical Roller Bearings withstand the most demanding conditions
by resisting seizure and wear in spite of constant vibration,
misalignment and shock loads. They maintain dimensional stability
and can support high radial loads and moderate axial loads. Their
performance enhancements include extremely tight radial clearance
tolerance, extra precision on the bore and outside diameter &
super-finished, heat-treated rollers with superior shock load
capacity.
Spherical Roller Bearings Features:
1. Accommodate misalignment
2. High load-carrying capacity
3. Long service life
4. Low friction
5. Robust
Range of Spherical Roller Bearings includes HPS series, Molded-Oil
bearings, sealed spherical roller bearings, quiet & low-vibration
series, ultra-large split bearings, Spherical roller bearings with
CAM cage and more.
| Product name | 100*180*46mm spherical roller bearing 22220 E |
| Size | 100*180*46mm |
| Weight | 5kg |
| Precision | P0 P6 P5 |
| Cage | E |
| Clearance | C0 C2 C3 C4 |

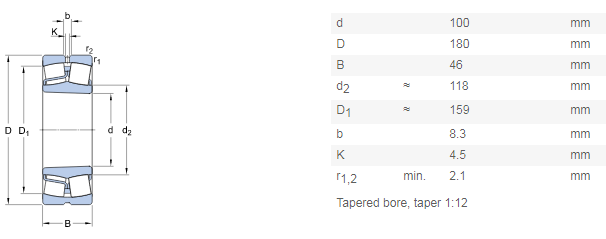

The Drawing:
Comparison of spherical roller bearing with
different cage
F3: Low cost, high noise, abrasion performance,constructure like CA
cage.
CA: Easy process, widely used.
MB: Double direction, better impact resistance.
CC: Like MB, better pressure resistance.
Features:
Modified inner geometry with super finished functional surfaces
Optimized contact pressures
No guide ring or mid flange
Robust cage made of cast iron
Internal groove separating the raceway and acting as a grease
reservoir
Significant weight reduction
Boundary dimensions in compliance to ISO
SKF Explorer performance class
Benefits:
Improved performance under typical wind operating conditions
Increased robustness and reliability
Increased bearing life
Compatibility with existing arrangements
Optimized for grease lubrication
Ensured best in class performance
Relatives:
| Model | d | D | H | Cr | Cor | weight |
| (mm) | (mm) | (mm) | (kN) | (kN) | (kg) |
| 29415 | 75 | 160 | 51 | 438 | 1270 | 29.9 |
| 29432 | 160 | 320 | 95 | 1480 | 4860 | 36.2 |
| 29422 | 110 | 230 | 73 | 845 | 2610 | 14.7 |
| 29436 | 180 | 360 | 109 | 1870 | 6110 | 52.6 |
| 29412 | 60 | 130 | 42 | -- | -- | -- |
| 29317 | 80 | 150 | 39 | -- | -- | -- |
| 29230 | 150 | 215 | 39 | -- | -- | -- |
| 29438 | 190 | 380 | 115 | 2040 | 6730 | 60.7 |
Why Choose Us
1). World-Class Bearing: We provide our customer with different
kinds of Standard and Non-standard World-Class Bearing
2). Technical Testing: Company will check the products one by one
before sending you.
3). Technical Assistance: Company can provide you all related
technical data if you needed
4). Quick Delivery: You will get your goods within 7 working days
after your payment.
5). After-sale service: we support 24 Hours after-sale service
displacement on the radial clearance.
Heavy industrial thrust roller bearings 29414E could meet more
precise specifications and higher robustness. These rigorous
demands increase the production cost. Normally this bearing item
has a higher price. But buy from us, you could save 20%-30%. Just
contact us right now.
