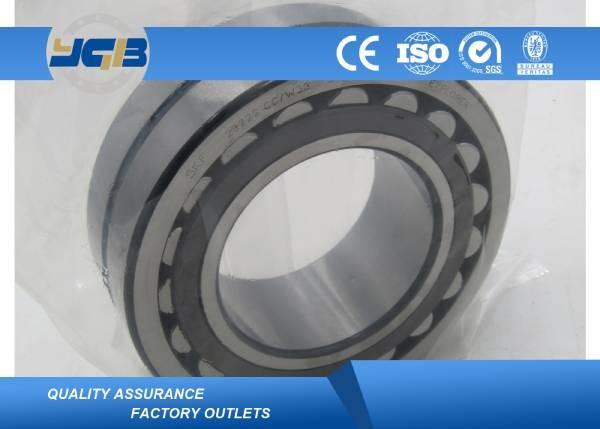

Chrome 23222CCK/W33 Spherical Roller Bearing With Cylindrical Bore 110x200x69.8

    Buy cheap Chrome 23222CCK/W33 Spherical Roller Bearing With Cylindrical Bore 110x200x69.8 from wholesalers

    Buy cheap Chrome 23222CCK/W33 Spherical Roller Bearing With Cylindrical Bore 110x200x69.8 from wholesalers
    • Buy cheap Chrome 23222CCK/W33 Spherical Roller Bearing With Cylindrical Bore 110x200x69.8 from wholesalers
    • Buy cheap Chrome 23222CCK/W33 Spherical Roller Bearing With Cylindrical Bore 110x200x69.8 from wholesalers

    Chrome 23222CCK/W33 Spherical Roller Bearing With Cylindrical Bore 110x200x69.8

    Ask Lasest Price
    Brand Name : SKF, TNT, YGB, OEM
    Model Number : 23222CCK/W33
    Certification : ISO 9001:2008
    Price : Negotiation
    Payment Terms : T/T or LC
    Supply Ability : 10,000pcs per month
    Delivery Time : 5-10 working days after received your payment
    • Product Details
    • Company Profile

    Chrome 23222CCK/W33 Spherical Roller Bearing With Cylindrical Bore 110x200x69.8


    Double row chrome 23222CCK/W33 Spherical Roller Bearing with Cylindrical Bore 110x200x69.8


    Product Description:


    Specifications
    Bearing TypeStraight bore
    Bore Dia (d)110mm
    Outer Dia (D)200mm
    Width (B)69.8mm
    Radius (min) (rs)2.1mm
    Dynamic Load Rating (Cr)620,000N
    Static Load Rating (Cor)920,000N
    Max Speed (Grease)1,400rpm
    Max Speed (Oil)1,800rpmzzz
    Weight (g)10,750.00grams
    Material52100 Chrome steel, or equivalent


    Suffix:

    CA: Integral brass cage, double row symmetrical roller, inner ring ride

    CC: Two window-type steel cages, double row symmetrical roller, inner ring ride

    MA: Machined brass cage, outer ring ride

    MB: Machined brass cage, inner ring ride


    K: Tapered bore, taper 1:12
    K30: Tapered bore, taper 1:30
    S: With a groove, lubrication holes in out rings.
    W: Without annular groove and lubrication holes in outer ring
    W20: Three lubrication holes in outer ring
    W26: Six lubrication holes in inner ring
    W33: Annular groove and three lubrication holes in outer ring
    W77: Plugged W33 lubrication holes

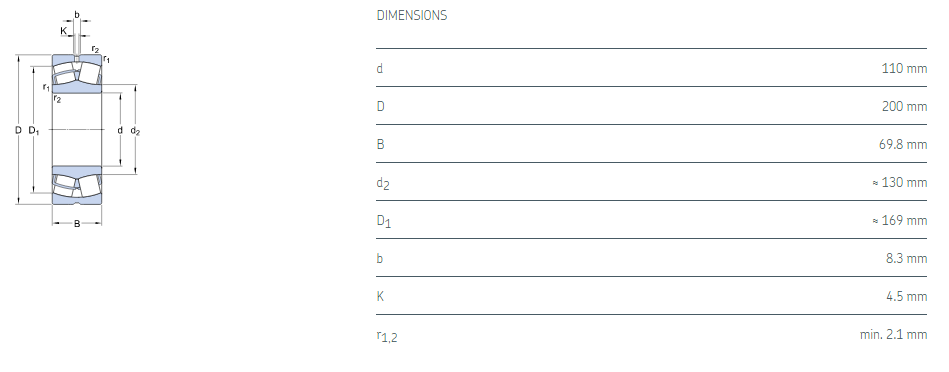

    The Drawing:



    Applications of spherical roller bearing:


    Papermaking machinery, speed reducer, railway vehicle axle, rolling mill gearbox housing, rolling mill roller, crusher, vibrating screen, printing machinery, woodworking machine

    imagesetters, Roots pumps, rubber machinery, knitting machines, rehabilitation physiotherapy equipment, iron making equipment, plastic machinery, chemical equipment, drilling machines, riveting equipment, rotary dryers, steel cutting machines, closed cooling towers, Brick making machinery, butt welding machines, etc.


    Relatives:


    TypeNew ModelOld ModelIDODWidthWeight
    (mm)(mm)(mm)(kg)
    Spherical roller bearing23244CCK/W33+H23443253240200400144-
    Spherical roller bearing23244/W333003244Y20040014494.2
    Spherical roller bearing23244K/C3W333G3113244Y20040014491.8
    Spherical roller bearing23244CC/W33305324422040014478.5
    Spherical roller bearing23244CCK/W33315324422040014478.5
    Spherical roller bearing23244K/W333113244Y22040014491.8
    Spherical roller bearing23244K311324422040014492.2
    Spherical roller bearing23244CAK/W333153244HK22040014479.5
    Spherical roller bearing23244CAK3153244H22040014479.5
    Spherical roller bearing23244CA/W333053244HK22040014478.795
    Spherical roller bearing23244CA3053244H22040014479.5

    The advantages:


    Able to bear the high axial load and moderate radial load and run at pretty high speed; Low friction and high load ratings; Self-align ability make it an ideal type of bearing used where housing was hard to keep accurate align with shaft or shaft was inflected under heavy load.


    Thrust roller bearings have very low axial section height, high load capacity, high rigidity and can support axial forces in one direction. Bearing washers can be used as housing or shaft locating washers; they are used in applications where precise centering is not required. The bore and outside surface are turned, the running surface is ground. Bearing washers can be used with the axial cylindrical roller and cage assemblies K811 and axial needle roller and cage assemblies AXK. Axial cylindrical roller bearings and axial cylindrical roller and cage assemblies can be used at operating temperatures from –20 °C to +120 °C.


    Why Choose Us


    1). World-Class Bearing: We provide our customer with different kinds of Standard and Non-standard World-Class Bearing

    2). Technical Testing: Company will check the products one by one before sending you.

    3). Technical Assistance: Company can provide you all related technical data if you needed

    4). Quick Delivery: You will get your goods within 7 working days after your payment.

    5). After-sale service: we support 24 Hours after-sale service

    displacement on the radial clearance.


    Heavy industrial thrust roller bearings 29414E could meet more precise specifications and higher robustness. These rigorous demands increase the production cost. Normally this bearing item has a higher price. But buy from us, you could save 20%-30%. Just contact us right now.
