Brand Name : | YGB,OEM,SKF,NTN,FAG |
Model Number : | 22320 E |
Certification : | ISO9001:2008 |
Price : | negotiation |
Payment Terms : | T/T or LC |
Supply Ability : | 10,000pcs per month |
Delivery Time : | 5-10 working days after received your payment |
Spherical Roller Bearings FAG SKF 22320 E Large Size Low Friction
For Coal Mining Industry
Description:
Model | 22320 E |
Bearing material | GCr15/AISI52100/100Cr6 |
ID*OD*W (mm) | 100 x 215 x 73 mm |
Seal type | double shields |
Lead time | Stock or 15-30days |
Limiting speed | 3000 r/min |
Clearance | C2,C0,C3,C4,C5 |
Vibration Level | V1, V2, V3, V4 |
Precision Rating | P0,P6,P5, |
MOQ | No MOQ |
Port | Shanghai |
Grease | Mobil polyrex EM,Kyodo Yushi SRL |
Payment terms | T/T, L/C |
Photos:

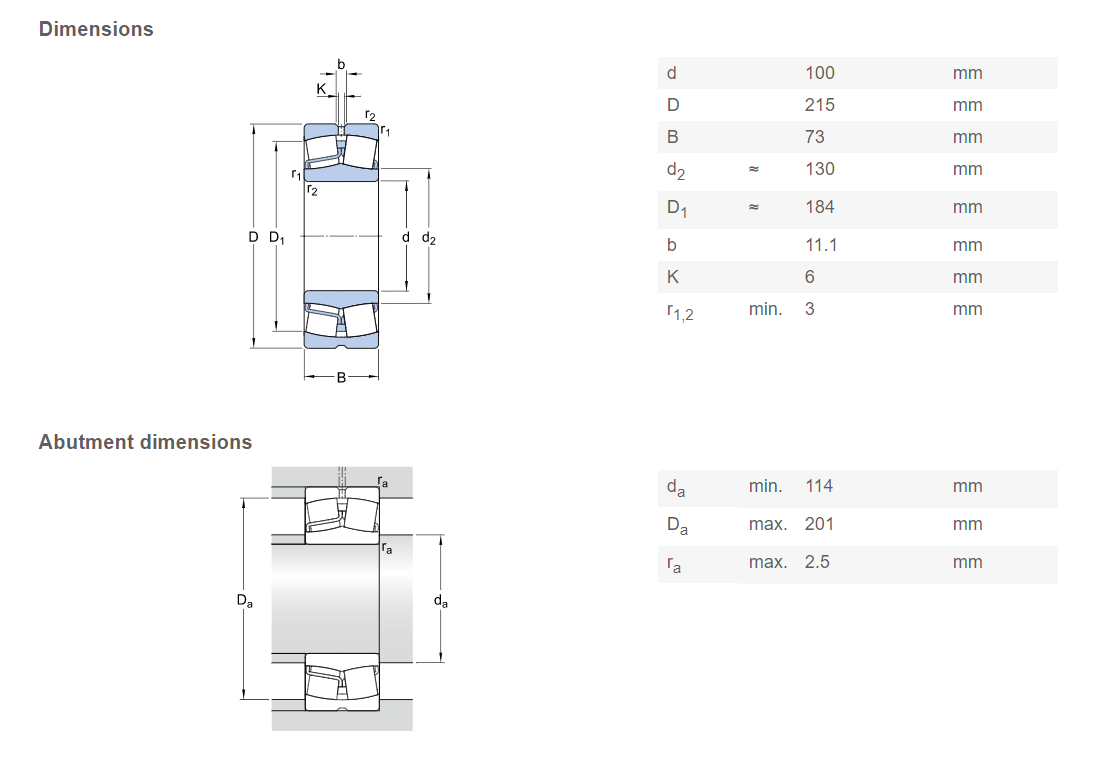

Drawing:
1.Internal Structure and Retainer Material Variation
C: Symmetrical roller, Stamped Steel retainer
CA: Symmetrical roller, one-piece brass cage
CTN1: Symmetrical roller, nylon cage
E: Third generation design. improved stress distribution; offer
much longer service life than normal designs
Q: Bronze cage
MB: Symmetrical roller, Two-piece brass cage
EM: Symmetrical roller, Special alloy Integral cage.
2.External form change
K: Tapered bore bearing, the taper is 1:12
K30: Tapered bore bearing, the taper is 1:30
N: A snap ring groove on the outer ring
W33: There are three lubrication groove and three lubrication holes
in the outer ring
SKF Spherical Roller bearing, The outer ring of the self-aligning
roller bearing is a sphere, which takes the bearing center as its
center, there are two raceway on the inner ring, which have a
certain angle with the axes, and it has a favorable self-alignment
function. Mainly it can be subjected to radial load and the axial
load from any direction.
Spherical thrust roller bearing contains convex rollers and has a
self-aligning capability and is free of any influence of mounting
error or shaft deflection standard cages are machined brass, where
the E type offers a pressed cage for high load capacity.
Specification:
1. High precision bearings
2. ISO standard bearing
3. High quality and competitive price
4. Many famous brands can be available
5. Low noise and long life
Packaging & Shipping:
Packaging Details
1. Industry packaging: Plastic tube + Carton + pallet
2. Commercial packaging: Single color box+Carton+pallet
3. According to the requirement of customers'
Other Bearing Type
1. Deep groove ball bearing
2. Cylindrical roller bearing
3. Taper roller bearing
4. Spherical roller bearing
5. Angular contact ball bearing
6. Self-aligning ball bearing
7. Needle roller bearing
8. Thrust ball/roller bearing
