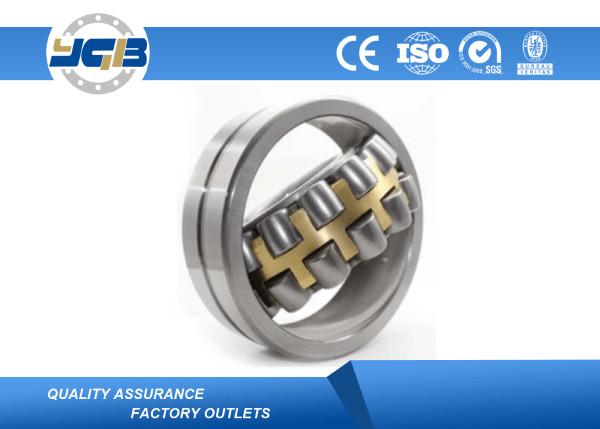

Spherical Roller Bearing 23140CCW33 23140CCK/W33 24140CC/W33
24140CCK30/W33
Product description:
Suffix:
CA: Integral brass cage, double row symmetrical roller, inner ring
ride
CC: Two window-type steel cages, double row symmetrical roller,
inner ring ride
MA: Machined brass cage, outer ring ride
MB: Machined brass cage, inner ring ride
K: Tapered bore, taper 1:12
K30: Tapered bore, taper 1:30
S: With a groove, lubrication holes in out rings.
W: Without annular groove and lubrication holes in outer ring
W20: Three lubrication holes in outer ring
W26: Six lubrication holes in inner ring
W33: Annular groove and three lubrication holes in outer ring
W77: Plugged W33 lubrication holes
Product name | Spherical Roller Bearing 23140CCW33 23140CCK/W33 24140CC/W33
24140CCK30/W33 |
Material | Chrome Steel GCr15 |
Seal type | open, zz, 2rs |
Cage | Steel Cage |
Number Of Row | Double Row |
Certificate | SGS/ISO9001 |
Ball Bearings Feature | 1 Long life span |
| 2 High rotating speed&Low noise |
Bearing Package | Pallet,wooden case,commercial packaging or as customers'
requirement. |
Service | OEM service provided |
Delivery time | 3-10 days depends on quantity needed |
Product Description
In a self-aligning bearing, the inner ring has two raceways and the
outer ring has a single spherical raceway with its center of
curvature coincident with the bearing axis. Self-Aligning Double
Row Ball Bearings are designed to work in applications where severe
misalignment exists whether from mounting or shaft deflection. The
concave raceway of the outer ring in combination with two rows of
balls operate over a wide range of contact angles.

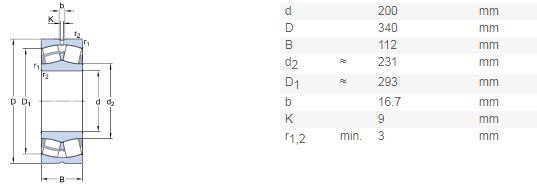

The drawing:
Spherical Roller Bearing Information:
(Universal Series 12xx, 13xx, 22xx, 23xx)
1. Roller bearings use rolling elements to maintain the separation
between moving parts to reduce rotational friction and support
radial and axial loads.
These elements can be one of the following types: ball,
cylindrical, spherical, barrel, needle, spindle, or tapered.
2. All roller bearings are open, shielded, or sealed.
3. Sealed bearings are lubricated with oil or grease in the bearing
factory, while open and shielded bearings are meant to be
lubricated in place, with periodic reapplication of lubrication,
based on use.
4. The shield protects the working parts of the bearing from
environmental debris that may be introduced and could reduce the
ball bearing speed and lifespan.
5. This structure of type is Cylindrical and tapered holes.
Related model number:
model list | d(mm) | D(mm) | B(mm) | Cr( N) | C0r(N) | m(kg) |
22308 | 40 | 90 | 33 | 73500 | 90500 | 1.041 |
22309 | 45 | 100 | 36 | 108000 | 140000 | 1.387 |
22310 | 50 | 110 | 40 | 140800 | 170000 | 1.827 |
22311 | 55 | 120 | 43 | 170500 | 198000 | 2.299 |
22312 | 60 | 130 | 46 | 184800 | 225000 | 2.881 |
22313 | 65 | 140 | 48 | 206800 | 252000 | 3.494 |
22314 | 70 | 150 | 51 | 253000 | 315000 | 4.212 |
22315 | 75 | 160 | 55 | 288200 | 388000 | 5.225 |
22316 | 80 | 170 | 58 | 316800 | 405000 | 6.296 |
22317 | 85 | 180 | 60 | 338800 | 440000 | 7.36 |
22318 | 90 | 190 | 64 | 401500 | 542000 | 8.878 |
22319 | 95 | 200 | 67 | 423500 | 570000 | 10.38 |
22320 | 100 | 215 | 73 | 495000 | 668000 | 12.941 |
22322 | 110 | 240 | 80 | 599500 | 832000 | 17.85 |
22324 | 120 | 260 | 86 | 709500 | 992000 | 22.378 |
22326 | 130 | 280 | 93 | 794200 | 1140000 | 28.13 |
22328 | 140 | 300 | 102 | 907500 | 1340000 | 34.84 |
22330 | 150 | 320 | 108 | 1230000 | 1600000 | 43.6 |
22332 | 160 | 340 | 114 | 1380000 | 1790000 | 51.9 |
22334 | 170 | 360 | 120 | 1420000 | 2060000 | 60.75 |
22336 | 180 | 380 | 126 | 1470000 | 2270000 | 68.08 |
Advantage:
(1)High-Quality Steel-Ultra clean steel to extend bearing life by up
to 80%.
(2)Advanced Grease Technology
(3)High-Grade Balls - Quiet and smooth operation even at high speed.
(4)Super Finished Raceways - Specially honed to minimize noise and
improve lubricant distribution and life.
Application:
Suitable for precision instruments, low noise motors, automobiles,
motorcycles, and general machinery, etc. It is the most widely used
type of bearing in the machinery industry.
