High-speed High precision 75*160*37 mm Factory price Angular
contact ball bearing 7315
Description :
| Product name | angular contact ball bearing 7315BTN1/7315ACM/7315C |
| Size | 75*160*37mm |
| Material | Gcr15 |
| Cage | Brass Cage |
| Seal Type | Open |
| Precision rate | P0,P6,P4,P5 |
| Quality | ISO9001 2000 Standard; CE |
| Package | Standard exported package or according to our customers'
requirement |
Single-row angular contact ball bearing - suited to work in lower
operating temperature and high speed with a heavy thrust load. It
can be mounted in a duplex arrangement. The refined bore tolerance
gives a higher life.
Double-row angular contact ball bearing - excellent axial and
radial rigidity in confined space.
Angular Contact Ball Bearings with contact angles of 15° (Symbol C)
and 25° (Symbol A5) are primarily for high precision or high-speed
applications and machined brass or synthetic resin cages or molded
polyamide cages are used.

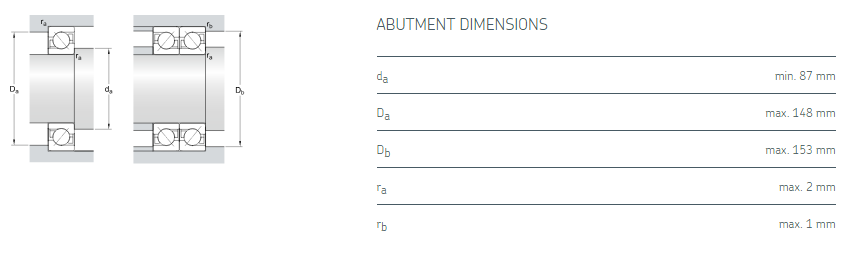

The Drawing:
Angular contact ball bearing:
Angular contact ball bearings are particularly suitable for
carrying combined (axial and radial) loads. Sometimes, they also
can carry pure axial load and operate at higher speeds. Under the
radial load, the axial component force will be produced which must
be counteracted. So the bearings are normally adjusted against a
second bearing.
Application:
Application: Angular Contact Ball Bearing is widely used in cars,
compressors, construction, electric motors, food industry, home
appliances etc. As a rolling element, it turns the world.
Our Advantages:
1. Manufacturer, the most competitive price and good quality
2. Perfect group of technical engineers gives you the best support
3. Well-trained group of international sales provides the best
service
4.OEM brand available
5.Rich stock and quick delivery
Other Bearings Numbers.
Professional, high quality, low price is our core competitiveness.
| Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | Bearing Number |
| d | D | B | rs min | r1s min | Cr | Cor | Grease | Oil | (Approx.) | CLIENT |
| 10 | 35 | 11 | 0.6 | 0.3 | 10.1 | 4.95 | 26,000 | 34,000 | 0.04 | 7300 |
| 12 | 37 | 12 | 1 | 0.6 | 11.2 | 5.25 | 23,000 | 30,000 | 0.044 | 7301 |
| 15 | 42 | 13 | 1 | 0.6 | 13.5 | 7.2 | 19,000 | 26,000 | 0.055 | 7302 |
| 17 | 47 | 14 | 1 | 0.6 | 15.9 | 8.65 | 18,000 | 24,000 | 0.107 | 7303 |
| 20 | 52 | 15 | 1.1 | 0.6 | 18.7 | 10.4 | 16,000 | 21,000 | 0.138 | 7304 |
| 25 | 62 | 17 | 1.1 | 0.6 | 26.4 | 15.8 | 13,000 | 17,000 | 0.23 | 7305 |
| 30 | 72 | 19 | 1.1 | 0.6 | 33.5 | 22.3 | 11,000 | 15,000 | 0.345 | 7306 |
Product line :
The company has two production bases under Holding Cooperation
which involves in production development, production, applications,
and sales areas. Therefore, we have a unique and profound
understanding of the bearings industry.
